| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,198 pcs
|
1198 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-06-01 21:33:19 |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

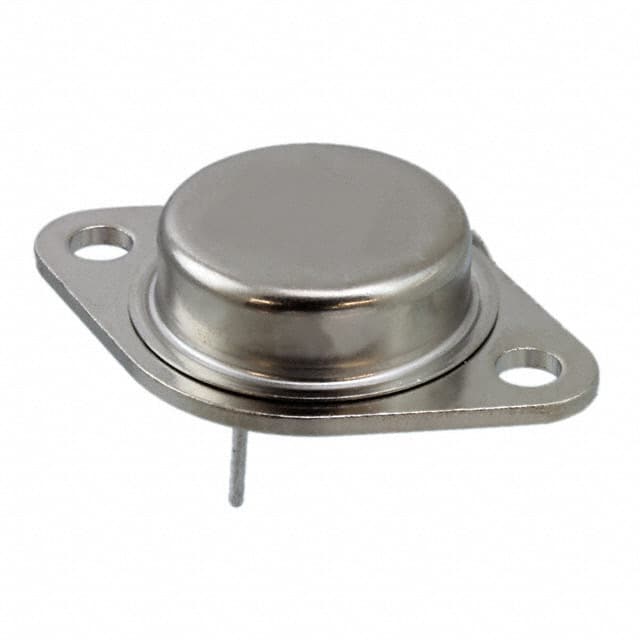

The JANTX2N6284 is a high-performance NPN Darlington bipolar junction transistor (BJT) manufactured by Microchip Technology. It is designed for applications requiring significant current handling and voltage amplification.
This transistor features a maximum collector-emitter voltage of 100V and can handle a continuous collector current of up to 20A. Its power dissipation rating is 175W, making it suitable for robust power applications. The device exhibits a high DC current gain (hFE) of 1250 at 10A and 3V, with a Vce saturation of 3V at 200mA and 20A.
Operating within a wide temperature range of -65°C to 200°C (TJ), the JANTX2N6284 is built for demanding environments. It is packaged in a TO-204AA (TO-3) form factor and utilizes through-hole mounting.
Key electrical characteristics include a minimum DC current gain of 1250 and a maximum Vce saturation of 3V. The transistor type is NPN - Darlington, providing high gain characteristics essential for power control circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The JANTX2N6284 transistor has a maximum continuous current of 20A.
The JANTX2N6284 operates between -65°C and 200°C.
The JANTX2N6284 is available in a TO-204AA (TO-3) package.
The DC current gain (hFE) of the JANTX2N6284 is a minimum of 1250 at 10A and 3V.
