| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
106 pcs
|
106 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

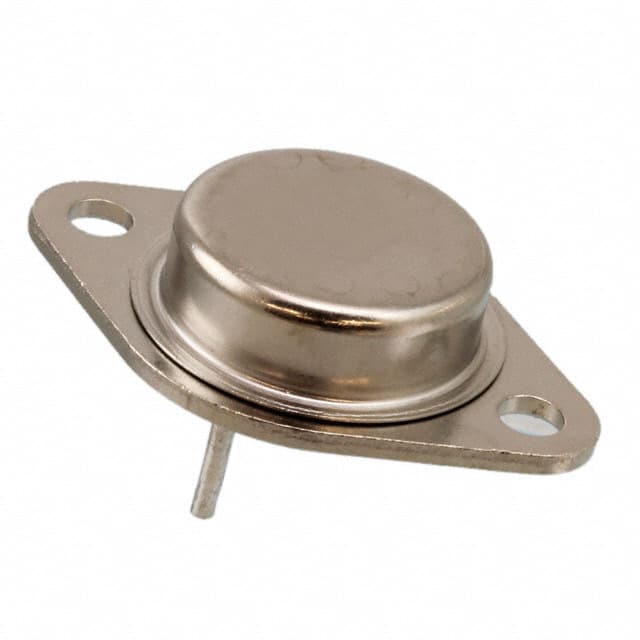

The JANTX2N6274 is a high-power NPN bipolar junction transistor (BJT) manufactured by Microchip Technology. Designed for demanding applications, it features a robust TO-3 package and through-hole mounting.
This transistor boasts a 100V collector-emitter voltage rating and can handle a continuous current of up to 50A, with a power dissipation of 250W. Its operating temperature range spans from -65°C to 200°C, making it suitable for harsh environments. Key electrical characteristics include a minimum DC current gain (hFE) of 30 at 20A and 4V, and a Vce saturation of 3V maximum at 10A and 50A.
The JANTX2N6274 is ideal for power switching and amplification circuits where high current and voltage handling are critical. Its reliable performance and wide operating temperature make it a suitable choice for industrial and high-reliability applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The JANTX2N6274 transistor has an operating voltage of 100V.
The JANTX2N6274 transistor has a continuous current rating of 50A.
The JANTX2N6274 transistor has a power dissipation of 250W.
The JANTX2N6274 transistor operates between -65°C and 200°C.
The JANTX2N6274 is available in a TO-3 package.
The JANTX2N6274 transistor is mounted using the through-hole method.
