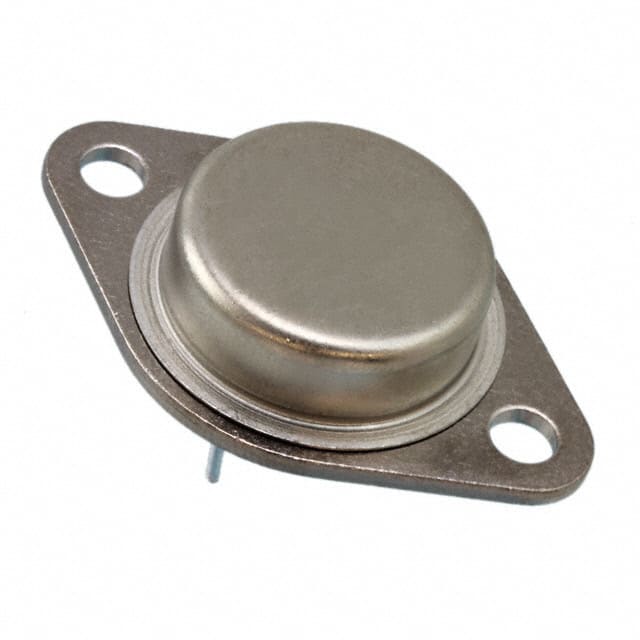

The JANTX2N5303 from Microchip Technology is a single NPN bipolar junction transistor designed for various electronic applications. It offers a maximum collector-emitter voltage of 80V and can handle a continuous current of 20A, with a power dissipation of 5W.
This transistor is housed in a TO-3 (TO-204AA) package and utilizes Through Hole mounting. Key electrical characteristics include a minimum DC current gain (hFE) of 15 at 10A and 2V, and a Vce saturation voltage of 2V at 4A and 20A.
Its robust specifications make it suitable for power switching and amplification circuits where high current and voltage handling are required. The TO-3 package is known for its thermal performance, making it a reliable choice for demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The JANTX2N5303 transistor has a voltage rating of 80V.
The JANTX2N5303 can handle a continuous current of 20A.
The JANTX2N5303 transistor has a power dissipation of 5W.
The JANTX2N5303 is available in a TO-3 (TO-204AA) package.
The JANTX2N5303 transistor is mounted using the Through Hole method.
The minimum DC current gain (hFE) for the JANTX2N5303 is 15 at 10A and 2V.
The Vce saturation voltage for the JANTX2N5303 is 2V at 4A and 20A.
