| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

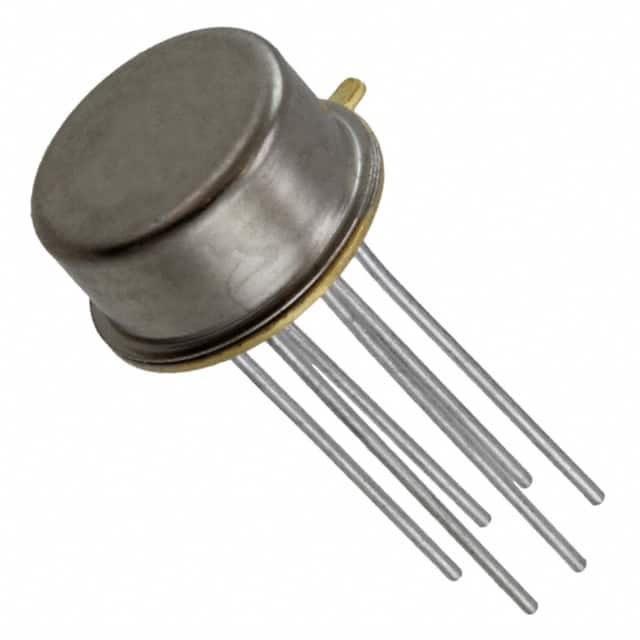

The JANTX2N4854 from Microchip Technology is a bipolar junction transistor (BJT) designed for various electronic applications. This component is an NPN/PNP type, offering versatility in circuit design.
Key electrical characteristics include a maximum voltage rating of 40V and a continuous collector current leakage of 10µA (ICBO). The transistor has a power dissipation of 600mW and a DC current gain (hFE) of 100 minimum at 150mA and 10V. Saturation voltage (Vce) is a maximum of 400mV at 15mA and 150mA.
This device operates within a wide temperature range of -65°C to 200°C (TJ). It is packaged in a TO-78-6 metal can and designed for through-hole mounting.
The JANTX2N4854 is suitable for applications requiring reliable switching or amplification within its specified parameters.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The JANTX2N4854 has a maximum voltage rating of 40V.
The JANTX2N4854 is supplied in a TO-78-6 Metal Can package.
The operating temperature range for the JANTX2N4854 is -65°C to 200°C (TJ).
