JANTX2N3879 The Microchip Technology JANTX2N3879 is an NPN bipolar transistor designed for demanding applications. It features a 75V collector-emitter breakdown voltage and a 7A collector current rating.
Mfr Part #:

JANTX2N3879

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology JANTX2N3879 is an NPN bipolar transistor designed for demanding applications. It features a 75V collector-emitter breakdown voltage and a 7A collector current rating.
✓ Total Stock: 2,650 pcs
$ Price Range: $0.99

JANTX2N3879 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,650 pcs
On Request
2650 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JANTX2N3879 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Lead Spacing
Mounting Type
Operating Temperature
Power
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

JANTX2N3879 Description

Short technical summary and product information.

The JANTX2N3879 from Microchip Technology is a high-performance NPN bipolar junction transistor (BJT) suitable for various electronic circuits. This component is rated for a maximum collector-emitter breakdown voltage of 75V and can handle a continuous collector current of up to 7A. It offers a maximum power dissipation of 35W, indicating its capability for handling significant power loads.



The transistor features a minimum DC current gain (hFE) of 20 at 4A and 5V, with a Vce saturation of 1.2V at 400mA and 4A. It operates within a wide temperature range of -65°C to 200°C (TJ).

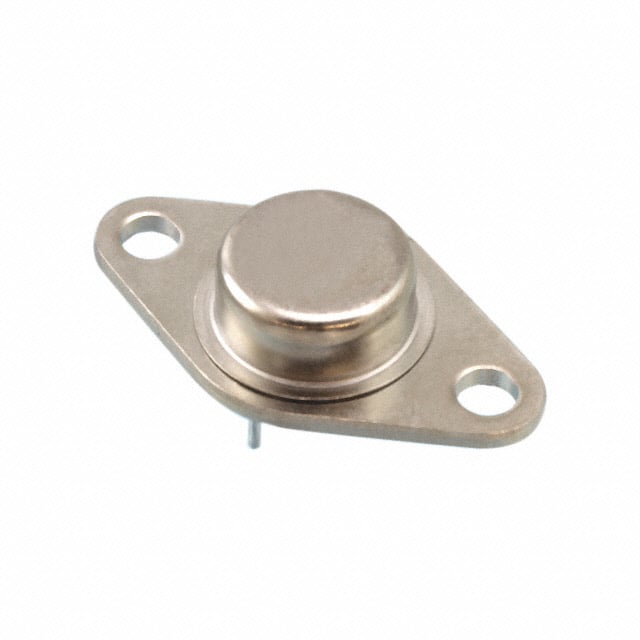

Packaged in a TO-213AA, TO-66-2 case, the JANTX2N3879 is designed for through-hole mounting. Its RoHS status is non-compliant, and it has a Moisture Sensitivity Level (MSL) of 1 (Unlimited).

JANTX2N3879 Quick Information

Product Type: Bipolar Transistor
Series: Military, MIL-PRF-19500/526
Canonical Name: Microchip Technology JANTX2N3879 NPN Bipolar Transistor
Subcategory: Bipolar (BJT) - Single

JANTX2N3879 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

JANTX2N3879 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

JANTX2N3879 Features

  • NPN bipolar transistor for power applications.
  • 75V collector-emitter breakdown voltage.
  • 7A maximum collector current.
  • 35W maximum power dissipation.
  • Wide operating temperature range.

JANTX2N3879 Applications

  • Suitable for power switching circuits.
  • Used in amplification stages.
  • Designed for high-current applications.
  • Robust performance in demanding environments.

JANTX2N3879 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the JANTX2N3879?

The operating temperature range is -65°C to 200°C (TJ).

What is the package type for the JANTX2N3879 transistor?

The JANTX2N3879 is available in a TO-213AA, TO-66-2 package.

How is the JANTX2N3879 transistor mounted?

This transistor is designed for through-hole mounting.

What is the RoHS status of the JANTX2N3879?

The JANTX2N3879 is RoHS non-compliant.
