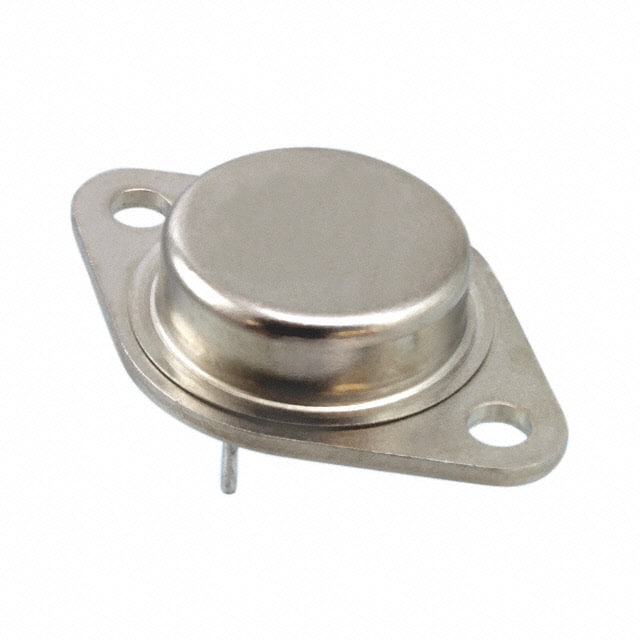

The JANTX2N3442 from Microchip Technology is a single NPN bipolar junction transistor (BJT) housed in a TO-3 package. This device is designed for applications requiring high voltage and current handling capabilities, featuring a maximum voltage rating of 140V and a continuous collector current of 10A.
Key electrical characteristics include a power dissipation of 6W and a DC current gain (hFE) of at least 20 at 3A and 4V. The saturation voltage (Vce(sat)) is a maximum of 1V at 300mA and 3A, indicating efficient switching performance. The operating temperature range is broad, spanning from -55°C to 200°C (TJ), making it suitable for demanding environments.
This transistor is mounted via a through-hole method, compatible with the TO-3 standard package. Its robust construction and specifications make it suitable for power switching and amplification circuits where reliability and performance are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The JANTX2N3442 transistor has a maximum voltage rating of 140 V.
The JANTX2N3442 can handle a continuous collector current of 10 A.
The JANTX2N3442 transistor has a power dissipation of 6 W.
The JANTX2N3442 operates within a temperature range of -55°C to 200°C (TJ).
The JANTX2N3442 is an NPN transistor.
The JANTX2N3442 is supplied in a TO-204AA, TO-3 package.
The JANTX2N3442 transistor is mounted using the through-hole method.
