| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Tolerance |

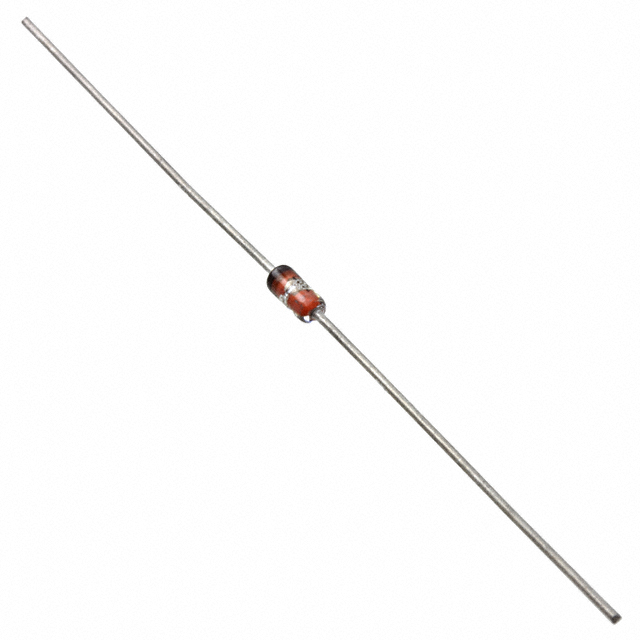

The JANTX1N992B-1 from Microsemi Corporation is a single Zener diode belonging to the JANTX series, designed for voltage regulation applications. This component offers a nominal Zener voltage of 200V with a tight tolerance of ±5%.
With a maximum power dissipation of 500mW, the JANTX1N992B-1 is suitable for various electronic circuits requiring stable voltage references. It exhibits a maximum forward voltage of 1.3V at 200mA and a low reverse leakage current of 500 nA at 2V. The diode operates within a wide temperature range of -65°C to 175°C.
This Zener diode is packaged in a DO-204AH, DO-35 axial package and is designed for through-hole mounting. The JANTX1N992B-1/TR designation indicates it is supplied on tape and reel for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 200V.
The Zener voltage tolerance is ±5%.
The maximum power dissipation is 500mW.
The maximum impedance is 2500 Ohms.
The reverse leakage current is 500nA at 2V reverse voltage.
The operating temperature range is -65°C to 175°C.
The JANTX1N992B-1 is available in a DO-204AH (DO-35) through-hole package.
