| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | 0846 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Type | |
| Unidirectional Channels | |
| Voltage | |
| Voltage - Reverse Standoff (Typ) |

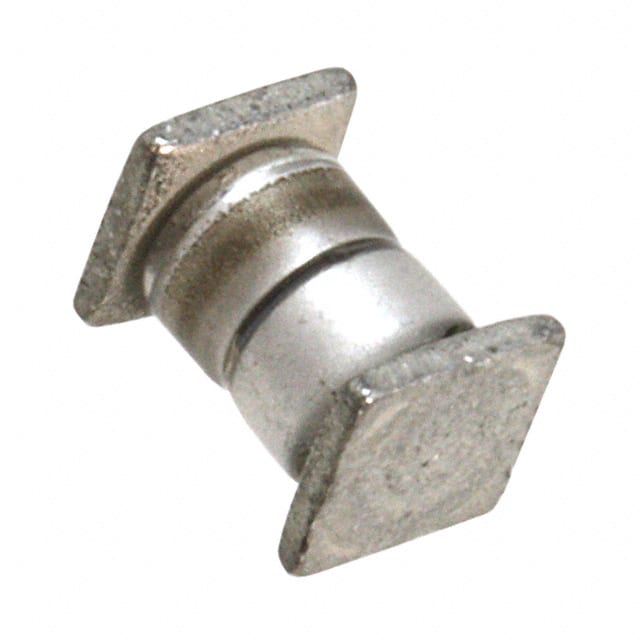

The JANTX1N6465US is a unidirectional transient voltage suppression (TVS) diode from Microchip Technology, designed to protect sensitive electronics from voltage transients. With a reverse standoff voltage of 24V and a maximum clamping voltage of 41.4V at 69A peak pulse current (8/20µs), it provides robust protection in a compact surface mount E-MELF package.
This device handles up to 500W of peak pulse power (8/20µs) and is suitable for general purpose circuit protection applications where fast response to transient overvoltage is required. The operating temperature range spans -55°C to 175°C, allowing use in harsh environments.
The part is surface mountable and comes in an E-MELF package, which is designed for high-reliability applications. It features a single unidirectional channel and does not include power line protection, making it ideal for signal line or low-voltage power rail protection.
| Qty | Low | High |
|---|---|---|
| 100+ | $17.09 | $17.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24V.
41.4V at 69A peak pulse current (8/20µs).
500W (8/20µs).
E-MELF surface mount package.
Unidirectional, with 1 channel.
