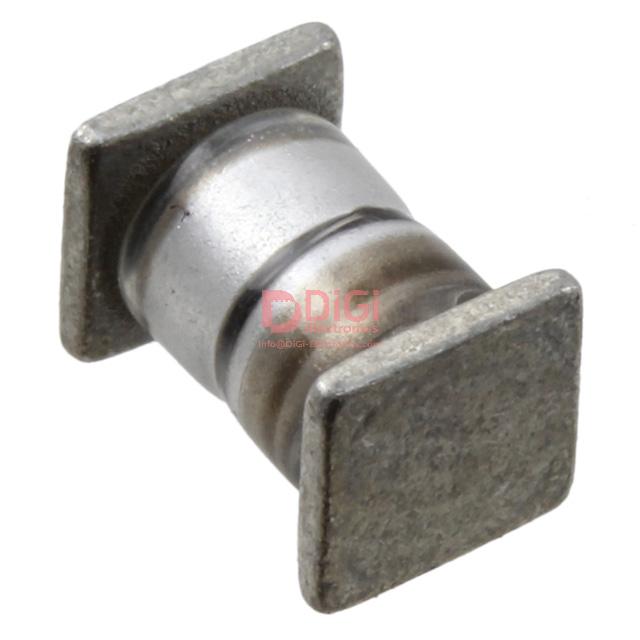

JANTX1N6310US The Microchip Technology JANTX1N6310US is a Zener Diode with a nominal voltage of 2.7V and a power rating of 500mW. It features a ±5% tolerance and is designed for surface mounting.
Mfr Part #:

JANTX1N6310US

Available from 1 distributors
Mfr Name: Microsemi Corporation
Microsemi Corporation
The Microchip Technology JANTX1N6310US is a Zener Diode with a nominal voltage of 2.7V and a power rating of 500mW. It features a ±5% tolerance and is designed for surface mounting.
✓ Total Stock: 50 pcs
$ Price Range: $0.99

JANTX1N6310US Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JANTX1N6310US Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Impedance
Lead Style
Military Grade
Mounting Type
Operating Temperature
Power Rating
SVHC Present
Tolerance
View Similar Products (0)

JANTX1N6310US Description

Short technical summary and product information.

The JANTX1N6310US from Microchip Technology is a single Zener diode designed for various electronic applications. It operates with a nominal Zener voltage of 2.7V and offers a tight tolerance of ±5%. The diode has a maximum power dissipation rating of 500mW, making it suitable for power regulation and voltage reference circuits.



This Zener diode features a low reverse leakage current of 60 µA at 1V and a forward voltage of 1.4V at 1A. It is specified for operation across a wide temperature range of -65°C to 175°C (TJ). The component is qualified under MIL-PRF-19500/533, indicating its suitability for military applications.



The JANTX1N6310US comes in a compact SQ-MELF package, designed for surface mount assembly. Its robust construction and specified performance characteristics make it a reliable choice for demanding electronic designs.

JANTX1N6310US Quick Information

Product Type: Zener Diode
Series: JANTX
Canonical Name: Microchip Technology JANTX1N6310US Zener Diode
Subcategory: Single Zener Diodes

JANTX1N6310US Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JANTX1N6310US Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

JANTX1N6310US Features

  • 2.7V nominal Zener voltage.
  • 500mW maximum power dissipation.
  • ±5% voltage tolerance.
  • Wide -65°C to 175°C operating temperature.
  • Military qualification MIL-PRF-19500/533.

JANTX1N6310US Applications

  • Voltage regulation circuits.
  • Voltage reference applications.
  • Power supply stabilization.
  • Signal clamping circuits.

JANTX1N6310US FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of the JANTX1N6310US?

2.7V nominal.

What is the power dissipation rating?

500mW maximum.

What is the voltage tolerance?

±5%.

What is the operating temperature range?

-65°C to 175°C.

What is the package type?

SQ-MELF surface mount.

Is the JANTX1N6310US military qualified?

Yes, qualified to MIL-PRF-19500/533.

What is the forward voltage?

1.4V at 1A.
