| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
160 pcs
|
160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Channels | |
| Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Type |

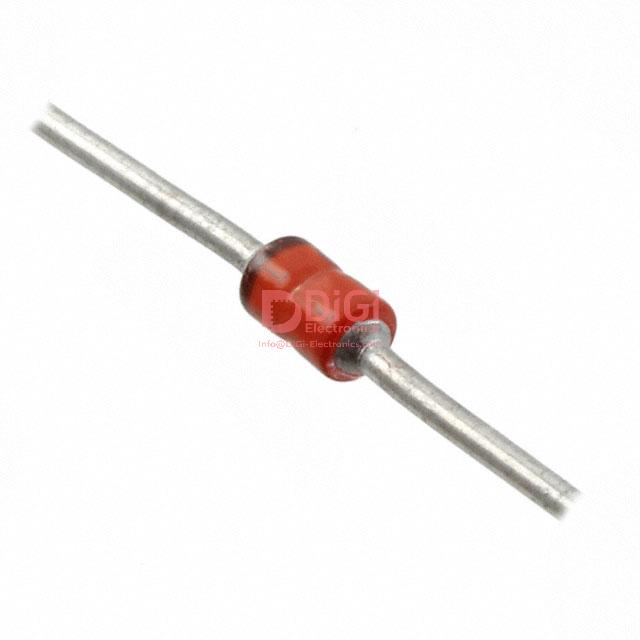

The Microsemi Corporation JANTX1N6147A is a bidirectional TVS Diode designed for general purpose applications. It features a reverse standoff voltage of 14V and a breakdown voltage of 15.6V. The clamping voltage is rated at a maximum of 23.2V at a peak pulse current of 21.5A (10/1000µs). This component can handle a peak pulse power of 500W.
Operating within a temperature range of -65°C to 150°C, the JANTX1N6147A is housed in a DO-204AL (DO-41) axial package and is designed for through-hole mounting. It meets military qualification standards, including MIL-PRF-19500.
This TVS diode is suitable for various protection needs where transient voltage suppression is required. Its robust construction and specified electrical characteristics make it a reliable choice for safeguarding sensitive electronic components from voltage spikes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14V.
15.6V.
23.2V at 21.5A.
21.5A (10/1000µs waveform).
500W.
DO-204AL (DO-41) axial-lead through-hole package.
MIL-PRF-19500.
