| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
109 pcs
|
109 pcs | On Request | 1 | On Request | On Request | 0904 | On Request | On Request | |
|
53 pcs
|
53 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Reverse Voltage | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

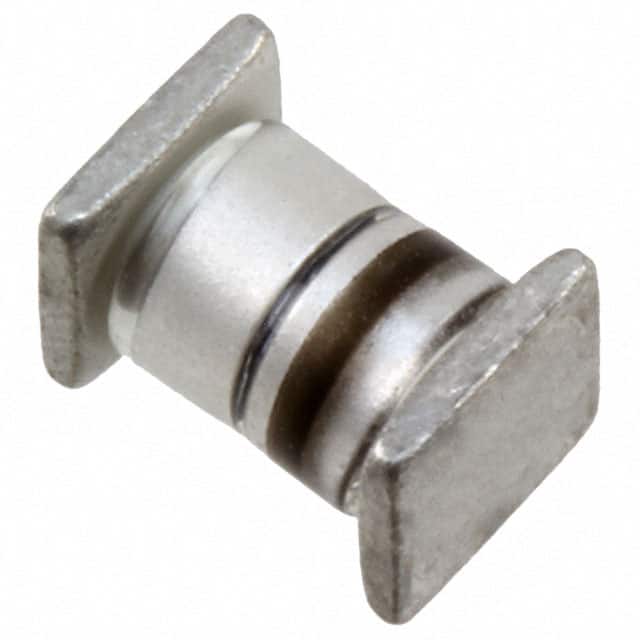

The JANTX1N5551US is a general purpose standard recovery rectifier diode manufactured by Microchip Technology. It is designed for applications requiring a maximum repetitive reverse voltage of 400V and an average rectified current of 5A. The device features a typical forward voltage of 1.2V at a forward current of 9A and a maximum reverse recovery time of 2 microseconds, classifying it as a standard recovery type (>500ns).
This diode uses standard silicon technology and is offered in a surface mount SQ-MELF package (case style B). It is rated for operation over a wide temperature range from -65°C to 175°C, making it suitable for demanding environments. The part is RoHS3 compliant and has an MSL of 1 (unlimited).
Typical applications include power supply rectification, freewheeling diodes, and general purpose switching circuits where fast recovery is not required. The surface mount SQ-MELF package enables automated assembly and is suitable for high-reliability designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.59 | $9.59 |
| 10+ | $9.58 | $9.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive reverse voltage is 400V.
The maximum average rectified current is 5A.
The typical forward voltage is 1.2V at a forward current of 9A.
The maximum reverse recovery time is 2 microseconds.
It is available in a surface mount SQ-MELF package (case style B).
The operating temperature range is -65°C to 175°C.
RoHS3 compliance is indicated but unverified.
