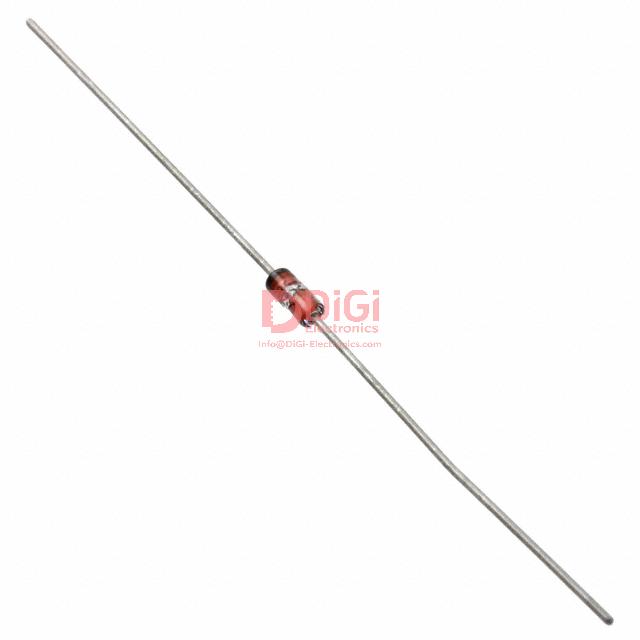

JANTX1N5535B1 The JANTX1N5535B1 is a Zener Diode from Microsemi Corporation with a nominal voltage of 15V and a power dissipation of 500mW. It is designed for through-hole mounting in a DO-35 package.
Mfr Part #:

JANTX1N5535B1

Available from 1 distributors
Mfr Name: Microsemi Corporation
Microsemi Corporation
The JANTX1N5535B1 is a Zener Diode from Microsemi Corporation with a nominal voltage of 15V and a power dissipation of 500mW. It is designed for through-hole mounting in a DO-35 package.
✓ Total Stock: 950 pcs
$ Price Range: $0.99

JANTX1N5535B1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
950 pcs
On Request
950 pcs On Request 1 On Request On Request 42 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JANTX1N5535B1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Forward Voltage
Grade
Impedance
Industrial Grade
Lead Style
Medical Grade
Military Grade
Mounting Type
Power Dissipation
Supplier Device Package
Tolerance
View Similar Products (0)

JANTX1N5535B1 Description

Short technical summary and product information.

The JANTX1N5535B1 is a military-grade Zener Diode manufactured by Microsemi Corporation. It features a nominal Zener voltage of 15V with a tolerance of ±5% and a maximum power dissipation of 500mW. The diode has a typical forward voltage of 1.1V at 200mA and a reverse leakage of 10nA at 13.5V.



Designed for through-hole mounting, this component comes in a DO-35 (DO-204AH) axial package. It operates within a temperature range of -65°C to 175°C and is qualified under MIL-PRF-19500/437.



This Zener diode is suitable for voltage regulation applications requiring military specifications. Its robust construction and specified performance parameters make it a reliable choice for demanding environments.

JANTX1N5535B1 Quick Information

Product Type: Zener Diode
Series: JANTX
Canonical Name: JANTX1N5535B1 Zener Diode
Subcategory: Zener Diode

JANTX1N5535B1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JANTX1N5535B1 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

JANTX1N5535B1 Features

  • 15V nominal Zener voltage rating.
  • 500mW maximum power dissipation.
  • ±5% voltage tolerance.
  • DO-35 (DO-204AH) axial package.
  • Military grade qualification.

JANTX1N5535B1 Applications

  • Voltage regulation in military electronics.
  • Reference voltage source in power supplies.
  • Overvoltage protection in DC circuits.
  • Clamping in low-power signal lines.

JANTX1N5535B1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the nominal Zener voltage of the JANTX1N5535B1?

15V.

What is the power dissipation rating?

500mW maximum.

What is the package type?

DO-35 (DO-204AH) axial through-hole.

What is the operating temperature range?

-65°C to 175°C.

What is the tolerance on the Zener voltage?

±5%.

What is the maximum impedance (Zzt)?

100 Ohms.

Is this device qualified to a military standard?

Yes, qualified to MIL-PRF-19500/437.
