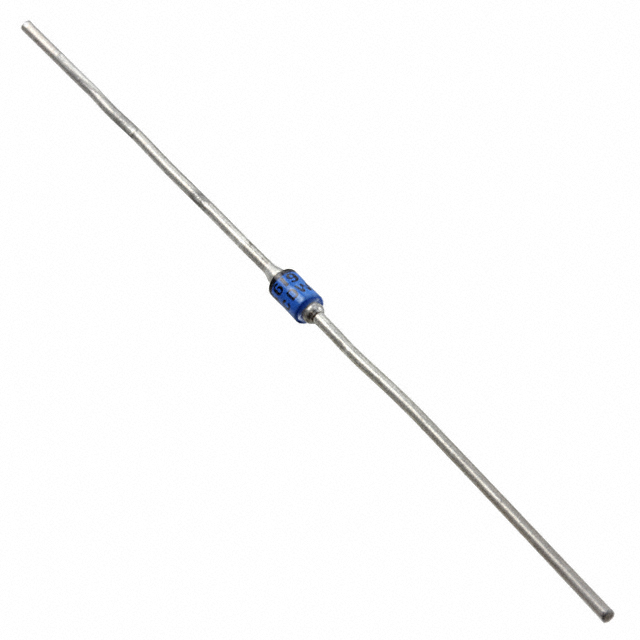

JANTX1N4965 JANTX1N4965 is a 20V Zener Diode from Microchip Technology. It features 5W power dissipation, ±5% tolerance, and through-hole axial mounting.
Mfr Part #:

JANTX1N4965

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
JANTX1N4965 is a 20V Zener Diode from Microchip Technology. It features 5W power dissipation, ±5% tolerance, and through-hole axial mounting.
✓ Total Stock: 1 pcs
$ Price Range: $6.54 - $6.55

JANTX1N4965 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JANTX1N4965 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Impedance (Max) (Zzt)
Lead Style
Military Grade
Mounting Type
Operating Temperature
Power
Tape & Reel
Tolerance
Voltage
View Similar Products (0)

JANTX1N4965 Description

Short technical summary and product information.

The JANTX1N4965 is a 20V Zener Diode manufactured by Microchip Technology. It has a nominal Zener voltage of 20V with a tolerance of ±5%. The diode is rated for a maximum power dissipation of 5W.



Electrical characteristics include a maximum Zener impedance of 4.5Ω, a forward voltage of 1.5V at 1A, and a reverse leakage current of 2µA at 15.2V. The device operates over a temperature range of -65°C to 175°C.



The JANTX1N4965 is housed in an E, Axial package and is designed for through-hole mounting. It is a single Zener diode suitable for various electronic circuits requiring voltage regulation or protection.

JANTX1N4965 Quick Information

Product Type: Zener Diode
Series: JANTX1N4965
Canonical Name: JANTX1N4965 Zener Diode, 20V, 5W, Axial
Subcategory: Single Zener Diode

JANTX1N4965 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JANTX1N4965 Estimated Pricing

Qty Low High
1+ $6.55 $6.55
10+ $6.54 $6.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

JANTX1N4965 Features

  • 20V nominal Zener voltage.
  • 5W maximum power dissipation.
  • ±5% tolerance on Zener voltage.
  • 4.5Ω maximum Zener impedance.
  • Through-hole axial package.

JANTX1N4965 Applications

  • Voltage regulation in military power supplies.
  • Overvoltage protection for avionics circuits.
  • Surge suppression in aerospace electronics.
  • Reference voltage for precision control systems.
  • Transient voltage clamping in industrial equipment.

JANTX1N4965 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of the JANTX1N4965?

The Zener voltage is 20V nominal.

What is the forward voltage of the JANTX1N4965?

The forward voltage is 1.5V maximum at 1A.

What is the package type of the JANTX1N4965?

The package is E, Axial.

What is the tolerance of the Zener voltage?

The tolerance is ±5%.

What is the reverse leakage current?

The reverse leakage current is 2µA maximum at 15.2V.

What is the Zener impedance?

The Zener impedance is 4.5Ω maximum.

What is the power dissipation rating?

The maximum power dissipation is 5W.
