Mfr Part #:

JANTX1N4102-1

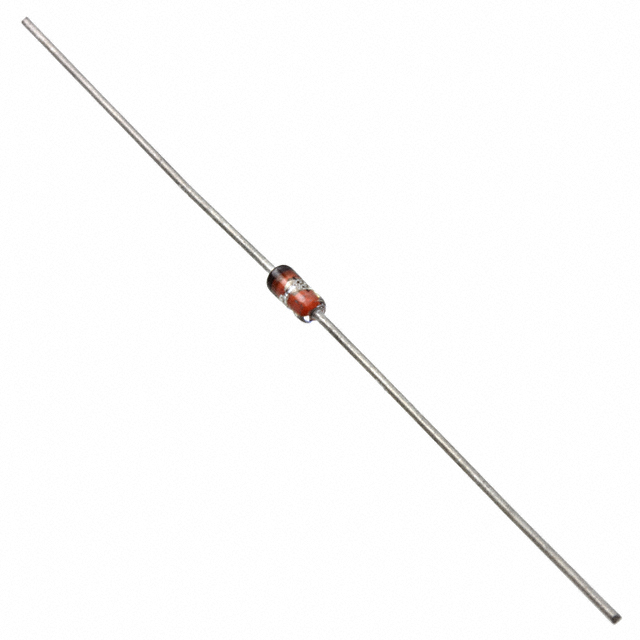

The Microsemi JANTX1N4102-1 is a single Zener diode designed for voltage regulation. It features a nominal Zener voltage of 8.7V and a maximum power dissipation of 500mW.

✓ Total Stock: 400 pcs

$ Price Range: $0.99

JANTX1N4102-1 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	400 pcs On Request	400 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

JANTX1N4102-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Microsemi Corporation
Military Grade	Yes
Mounting Type	Through Hole
Operating Temperature	-65°C ~ 175°C
SVHC Present	Not Present
Supplier Device Package	DO-35
Tolerance	±5%

View Similar Products (0)

JANTX1N4102-1 Description

Short technical summary and product information.

The Microsemi JANTX1N4102-1 is a single Zener diode with a nominal Zener voltage of 8.7V and a tolerance of ±5%. It is rated for a maximum power of 500mW and has a maximum impedance of 200 Ohms.

This diode exhibits a reverse leakage current of 500 nA at 6.7V and a maximum forward voltage of 1.1V at 200 mA. The operating temperature range for this component is -65°C to 175°C.

Packaged in a DO-204AH, DO-35, Axial configuration, the JANTX1N4102-1 is designed for through-hole mounting. Its robust construction and wide operating temperature range make it suitable for various electronic applications requiring stable voltage reference or regulation.

JANTX1N4102-1 Quick Information

Product Type: Zener Diode

Canonical Name: Microsemi JANTX1N4102-1 Zener Diode

Subcategory: Zener Diode

JANTX1N4102-1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

JANTX1N4102-1 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

JANTX1N4102-1 Features

Nominal Zener voltage is 8.7V.
Maximum power dissipation is 500mW.
Wide operating temperature range of -65°C to 175°C.
Through-hole mounting in DO-35 package.
Low reverse leakage current of 500 nA.

JANTX1N4102-1 Applications

Used for voltage regulation circuits.
Suitable for stable voltage references.
Applicable in wide temperature environments.
Designed for through-hole PCB assembly.

JANTX1N4102-1 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the nominal zener voltage?

8.7 V.

What is the tolerance?

±5%.

What is the maximum power dissipation?

500 mW.

What is the maximum impedance?

200 ohms.

What is the maximum forward voltage?

1.1 V at 200 mA.

What is the reverse leakage current?

500 nA at 6.7 V.

What package type is available?

DO-35 through-hole.
