| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Forward Voltage (Vf) | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |

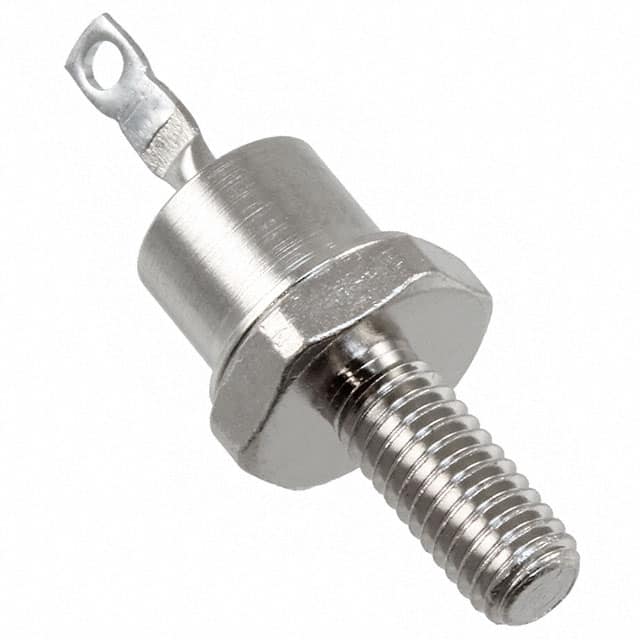

The JANTX1N3890 is a fast recovery rectifier diode manufactured by Microchip Technology. It is rated for a maximum reverse voltage of 100V and an average rectified current of 12A.
The device features a forward voltage drop of 1.5V maximum at 20A and a fast reverse recovery time of 200ns. This qualifies it as a fast recovery diode with speeds up to 500ns. The junction capacitance is 115 pF at 10V and 1 MHz.
The diode operates over a temperature range of -65°C to 175°C. It is designed for stud mount installation and is supplied in a DO-203AA (DO-4) package. The part is also cross-referenced as DigiKey part number 1086-15304-ND.
| Qty | Low | High |
|---|---|---|
| 100+ | $282.28 | $282.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100V maximum.
12A.
1.5V maximum at 20A.
200ns maximum.
DO-203AA (stud mount).
115 pF at 10V, 1 MHz.
-65°C to 175°C.
