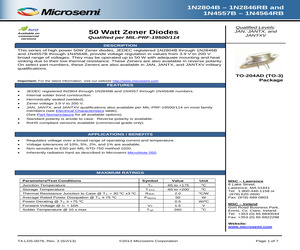

JANTX1N2804B The Microsemi JANTX1N2804B is a 50W Zener diode with a nominal voltage of 6.8V. It is housed in a TO-204AD (TO-3) package.
Mfr Part #:

JANTX1N2804B

Available from 1 distributors
Mfr Name: Microsemi Corporation
Microsemi Corporation
The Microsemi JANTX1N2804B is a 50W Zener diode with a nominal voltage of 6.8V. It is housed in a TO-204AD (TO-3) package.
✓ Total Stock: 20 pcs
$ Price Range: $0.99

JANTX1N2804B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JANTX1N2804B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
SVHC Present
Storage Temperature
Thermal Resistance
Voltage Rating
View Similar Products (0)

JANTX1N2804B Description

Short technical summary and product information.

The Microsemi JANTX1N2804B is a high-power Zener diode designed for voltage regulation applications. It offers a nominal Zener voltage of 6.8V and can dissipate up to 50 watts of power with adequate heat sinking.



This JEDEC registered diode series covers a broad voltage range from 3.9V to 200V. The JANTX1N2804B features internal solder bond construction and is hermetically sealed. It operates over a wide temperature range from -65°C to +175°C.



The diode is supplied in the industry-standard TO-3 (TO-204AD) package, suitable for through-hole mounting. Its low thermal resistance allows for efficient heat dissipation, making it suitable for demanding power applications. The standard polarity has the anode connected to the case.



Available in military qualifications such as JAN, JANTX, and JANTXV, this Zener diode is also noted for being non-sensitive to ESD and inherently radiation-hard.

JANTX1N2804B Quick Information

Product Type: Zener Diode
Series: 1N2804B
Canonical Name: Microsemi JANTX1N2804B Zener Diode
Subcategory: Single Zener Diodes

JANTX1N2804B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JANTX1N2804B Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

JANTX1N2804B Features

  • 50 Watt power dissipation capability.
  • 6.8V nominal Zener voltage.
  • TO-204AD (TO-3) package.
  • Wide operating temperature range.
  • Available in military qualifications.

JANTX1N2804B Applications

  • Provides stable voltage regulation.
  • Suitable for high power circuits.
  • Used in power supply applications.
  • Ideal for demanding environments.

JANTX1N2804B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of the JANTX1N2804B?

6.8V nominal.

What is the power dissipation of the JANTX1N2804B?

50W when case temperature is below 75°C.

What is the package type for the JANTX1N2804B?

TO-204AD (TO-3).

What is the maximum forward voltage?

1.5V at 10A forward current.

What is the reverse leakage current?

150µA at 4.5V reverse voltage.

What is the operating temperature range?

-65°C to +175°C junction temperature.

What is the maximum Zener impedance?

0.2 Ohms.
