| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,568 pcs
|
2568 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |
The JANTX1N1202A is a standard recovery rectifier diode designed for general purpose power rectification. It offers a maximum repetitive reverse voltage of 200V and an average forward current of 12A.
With a forward voltage of 2.3V at 240A and a fast recovery time of 500ns, this diode is suitable for applications requiring moderate switching speeds. The device operates over a wide temperature range from -65°C to 150°C.

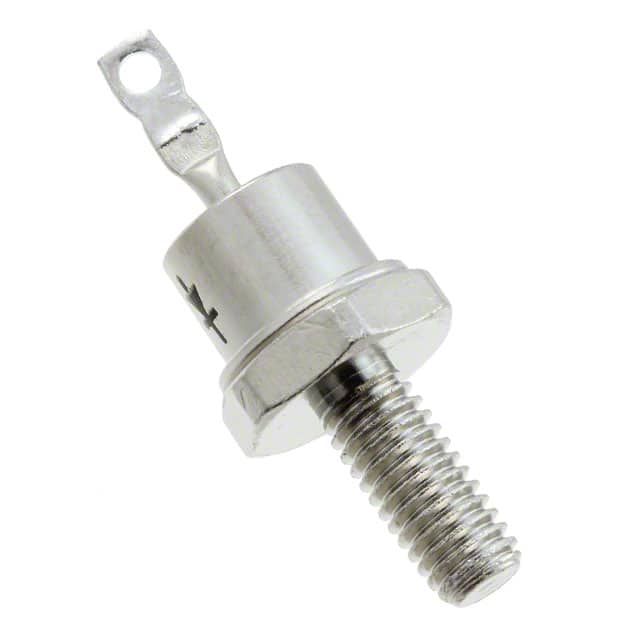

The diode is packaged in a DO-203AA (DO-4) stud mount case, providing robust mechanical mounting and efficient heat dissipation. This package is ideal for high-reliability applications in industrial and military environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $66.28 | $66.28 |
| 10+ | $66.27 | $66.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive reverse voltage is 200V.
The average rectified current is 12A.
The forward voltage is 2.3V at a forward current of 240A.
The reverse recovery time is 500ns (fast recovery).
It is available in a DO-203AA (DO-4) stud mount package.
The operating temperature range is -65°C to 150°C.
