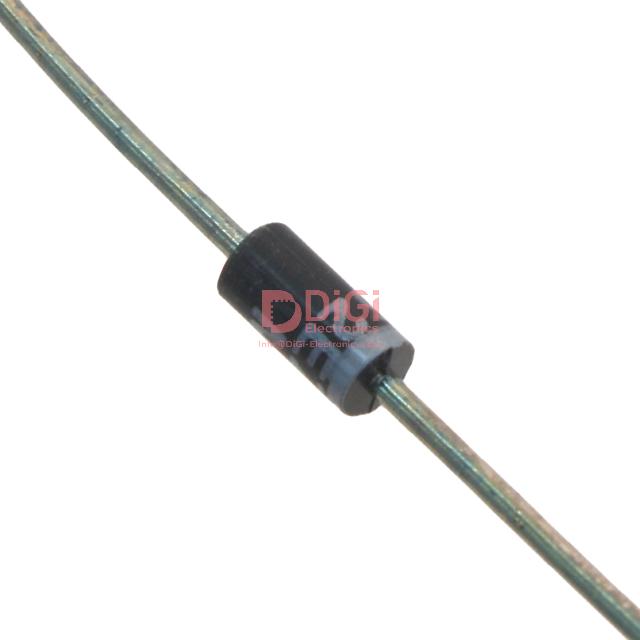

JANS1N4981 The Microsemi Corporation 3EZ14D5E3/TR8 is a Zener diode with a nominal voltage of 14V and a power rating of 3W. It features a ±5% tolerance and is housed in a through-hole package.
Mfr Part #:

JANS1N4981

Available from 1 distributors
Mfr Name: Microsemi Corporation
Microsemi Corporation
The Microsemi Corporation 3EZ14D5E3/TR8 is a Zener diode with a nominal voltage of 14V and a power rating of 3W. It features a ±5% tolerance and is housed in a through-hole package.
✓ Total Stock: 160 pcs
$ Price Range: $0.99

JANS1N4981 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
160 pcs
On Request
160 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JANS1N4981 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Military Grade
Mounting Type
Operating Temperature
Supplier Device Package
Tolerance
View Similar Products (0)

JANS1N4981 Description

Short technical summary and product information.

This Zener diode from Microsemi Corporation, part number 3EZ14D5E3/TR8, is designed for voltage regulation applications. It offers a nominal Zener voltage of 14V with a tight tolerance of ±5%. The diode can handle a maximum power dissipation of 3W.



Key electrical characteristics include a maximum forward voltage of 1.2V at 200mA and a reverse leakage current of 500nA at 10.6V. The impedance at the Zener test voltage is a maximum of 5 Ohms.



Designed for through-hole mounting, this component utilizes the DO-204AL (DO-41) package. It operates within a temperature range of -65°C to 150°C. The part is suitable for various electronic circuits requiring stable voltage reference.

JANS1N4981 Quick Information

Product Type: Zener Diode
Series: JANS
Canonical Name: Microsemi Corporation 3EZ14D5E3/TR8 Zener Diode
Subcategory: Zener Diode

JANS1N4981 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JANS1N4981 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

JANS1N4981 Features

  • 14V nominal Zener voltage.
  • 3W maximum power dissipation.
  • ±5% voltage tolerance.
  • Through-hole mounting package.
  • Wide operating temperature range.

JANS1N4981 Applications

  • Voltage regulation circuits.
  • Stable voltage reference.
  • Power supply applications.
  • General electronic circuits.

JANS1N4981 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of JANS1N4981?

The nominal Zener voltage is 14V with a tolerance of ±5%.

What is the maximum power dissipation of JANS1N4981?

The maximum power dissipation is 3W.

What package type does JANS1N4981 come in?

It is available in a DO-204AL (DO-41) axial leaded through-hole package.

What is the forward voltage of JANS1N4981?

The maximum forward voltage is 1.2V at a forward current of 200mA.

What is the operating temperature range of JANS1N4981?

The operating temperature range is -65°C to 150°C.

What is the reverse leakage current of JANS1N4981?

The reverse leakage current is 500nA at a reverse voltage of 10.6V.

What is the impedance of JANS1N4981?

The maximum impedance (Zzt) is 5 Ohms.
