Mfr Part #:

JAN4N47

Mfr Name: MII

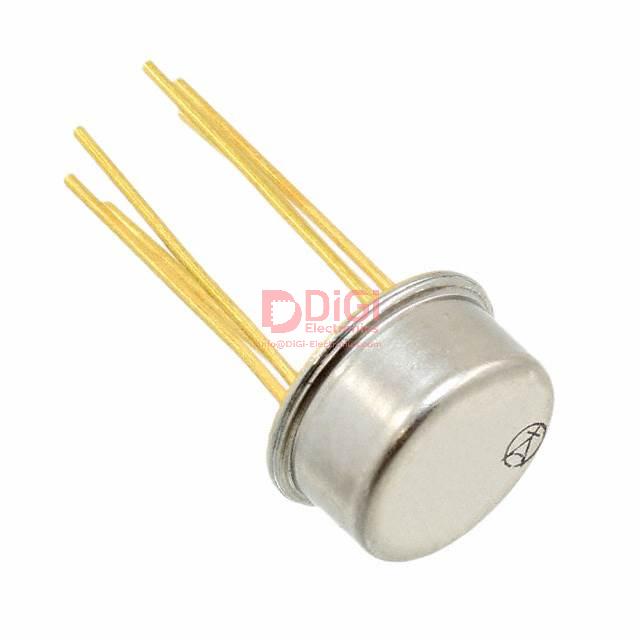

The JAN4N47 is an optoisolator from TT Electronics/Optek Technology featuring 1000VDC isolation and a transistor with base output. It is housed in a TO-78-6 package.

✓ Total Stock: 1,440 pcs

$ Price Range: $0.35

JAN4N47 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	1,440 pcs On Request	1440 pcs	On Request	1	On Request	On Request	2136	On Request	On Request

JAN4N47 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	MII
Input Type	DC
Lead Style	Through Hole
Military Grade	Yes
Mounting Type	Through Hole
Number of Channels	1
Output Type	Transistor with Base

View Similar Products (0)

JAN4N47 Description

Short technical summary and product information.

The JAN4N47 is a transistor output optoisolator manufactured by TT Electronics/Optek Technology. It provides 1000VDC of isolation, making it suitable for applications requiring high voltage separation.

This component features a transistor output with a base, an input type of DC, and an output voltage rating of up to 40V. The current transfer ratio is a minimum of 50% at 1mA, and the rise and fall times are typically 20µs maximum.

The optoisolator is packaged in a TO-78-6 case and is designed for through-hole mounting. Its specifications make it a reliable choice for signal isolation in various electronic circuits where high voltage is a concern.

Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted as low confidence due to unverified data.

JAN4N47 Quick Information

Product Type: Optoisolator

Series: 4N47

Canonical Name: JAN4N47 Optoisolator

Subcategory: Transistor, Photovoltaic Output Optoisolators

JAN4N47 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

JAN4N47 Estimated Pricing

Qty	Low	High
1+	$0.35	$0.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

JAN4N47 Features

1000VDC isolation voltage.
Transistor output with base.
Minimum CTR of 50% @ 1mA.
TO-78-6 package for through-hole mounting.
DC input type.

JAN4N47 Applications

Suitable for high voltage isolation.
Used in signal isolation circuits.
Component for power supply applications.
Interface between different voltage domains.

JAN4N47 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the isolation voltage rating of the JAN4N47?

The JAN4N47 provides 1000VDC isolation.

What is the output voltage rating of the JAN4N47?

The maximum output voltage is 40V.

What is the current transfer ratio of the JAN4N47?

The minimum current transfer ratio is 50% at 1mA.

What are the rise and fall times of the JAN4N47?

The maximum rise and fall times are 20µs.

What is the package type of the JAN4N47?

The JAN4N47 comes in a TO-78-6 through-hole package.

How many channels does the JAN4N47 have?

The JAN4N47 is a single-channel optocoupler.

What is the input type of the JAN4N47?

The input type is DC.
