| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current - Collector Cutoff | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Military Qualification | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

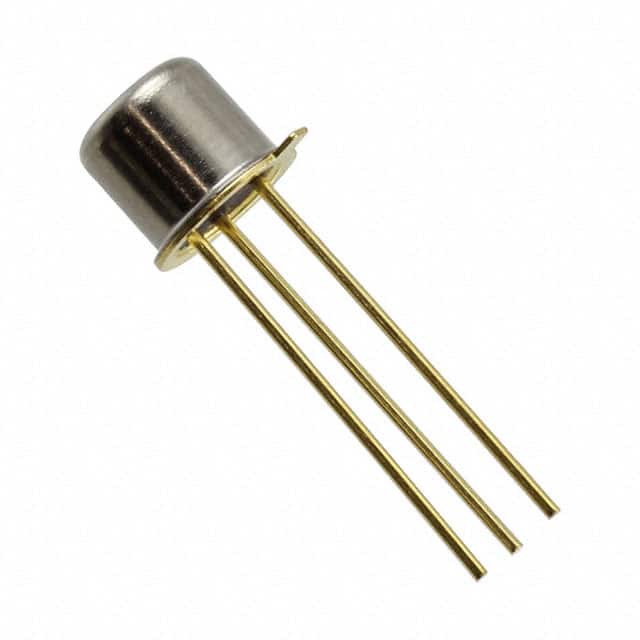

The Microchip Technology JAN2N918 is a single NPN bipolar junction transistor (BJT) suitable for various electronic applications. It is designed for through-hole mounting and comes in a TO-72 metal can package.
Key electrical characteristics include a collector-emitter breakdown voltage of 15V and a maximum collector current of 50mA. The device offers a minimum DC current gain (hFE) of 20 at 3mA and 1V. Its Vce saturation is rated at a maximum of 400mV at 1mA and 10mA, with a collector cutoff current of 1µA (ICBO).
This transistor operates within a temperature range of -65°C to 200°C (TJ). It is qualified under MIL-PRF-19500/301, indicating its suitability for military applications. The component has a maximum power dissipation of 200mW.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. The JAN2N918 is a through-hole component, making it suitable for traditional PCB assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -65°C to 200°C (TJ).
The package type is TO-72-3 Metal Can.
The minimum DC current gain (hFE) is 20 at 3mA and 1V.
The collector-emitter breakdown voltage is 15V.
The maximum collector current is 50mA.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
