The JAN2N6782 is an N-Channel MOSFET manufactured by Microsemi Corporation. It is designed for applications requiring a drain-source voltage (Vdss) of up to 100V and can handle a continuous drain current of 3.5A at 25°C (Tc). The MOSFET has a maximum on-resistance (Rds On) of 610mOhm at 3.5A and 10V gate drive voltage.
Key electrical characteristics include a gate threshold voltage (Vgs(th)) of 4V at 250µA and a maximum gate-source voltage (Vgs) of ±20V. The gate charge (Qg) is a maximum of 8.1nC at 10V. Power dissipation is rated at 800mW (Ta) and 15W (Tc).
This component operates within a temperature range of -55°C to 150°C (TJ). It is housed in a TO-39 package, specifically a TO-205AF Metal Can, and features through-hole mounting. The part is classified under the Military series, MIL-PRF-19500/556, and is marked as obsolete.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status, though these are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) for the JAN2N6782 is 100V.
The continuous drain current (Id) for the JAN2N6782 is 3.5A at 25°C (Tc).
The maximum on-resistance (Rds On) for the JAN2N6782 is 610mOhm at 3.5A and 10V.
The maximum gate threshold voltage (Vgs(th)) for the JAN2N6782 is 4V at 250µA.
The operating temperature range for the JAN2N6782 is -55°C to 150°C (TJ).

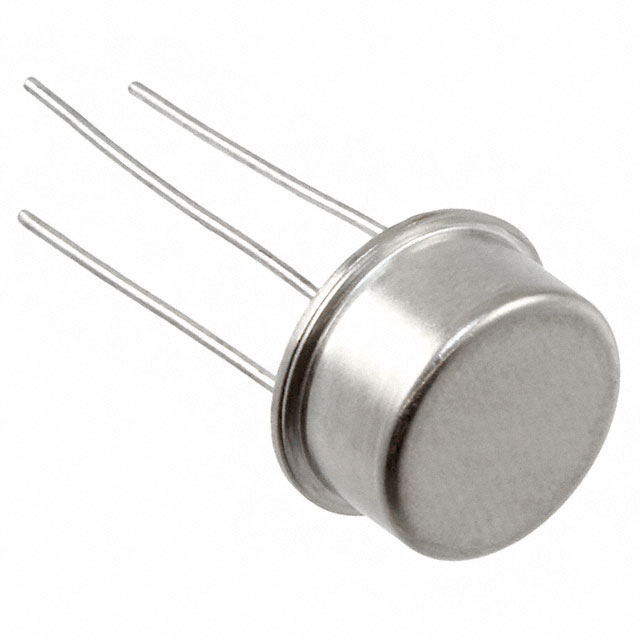

The JAN2N6782 is supplied in a TO-39 package, specifically a TO-205AF Metal Can.
The JAN2N6782 is listed as RoHS3 Compliant.
