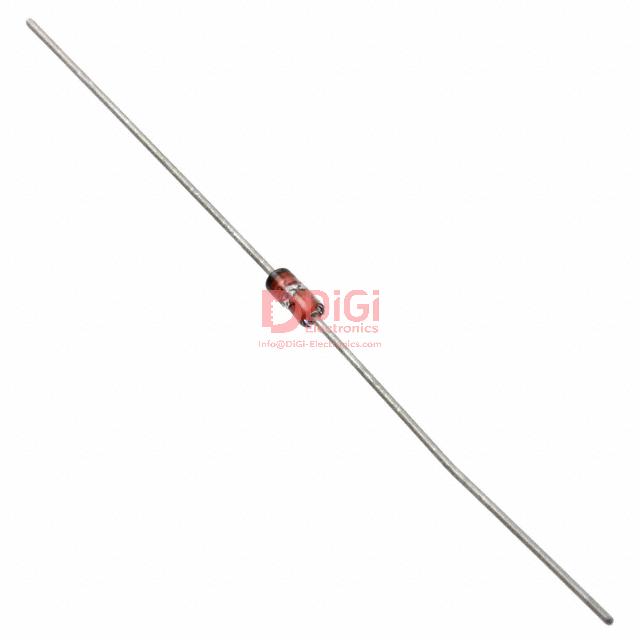

JAN1N964B The Microsemi Corporation JAN1N964B is a Zener diode with a nominal Zener voltage of 13V and a power rating of 500mW. It features a ±5% tolerance and is housed in a through-hole DO-35 package.
Mfr Part #:

JAN1N964B

Available from 1 distributors
Mfr Name: Microsemi Corporation
Microsemi Corporation
The Microsemi Corporation JAN1N964B is a Zener diode with a nominal Zener voltage of 13V and a power rating of 500mW. It features a ±5% tolerance and is housed in a through-hole DO-35 package.
✓ Total Stock: 22 pcs
$ Price Range: $0.02

JAN1N964B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
22 pcs
On Request
22 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JAN1N964B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Military Grade
Mounting Type
Operating Temperature
SVHC Present
Supplier Device Package
Tolerance
View Similar Products (0)

JAN1N964B Description

Short technical summary and product information.

The JAN1N964B from Microsemi Corporation is a single Zener diode designed for voltage regulation applications. It offers a nominal Zener voltage of 13V with a tight tolerance of ±5%. The diode has a maximum power dissipation rating of 500mW and a low reverse leakage current of 500 nA at 9.9V.



This Zener diode operates over a wide temperature range of -65°C to 175°C. It is qualified to MIL-PRF-19500/117 standards, indicating its suitability for demanding applications. The component is mounted using a through-hole method and comes in a DO-35 (DO-204AH) axial package, making it compatible with standard PCB assembly processes.



Key electrical characteristics include a maximum forward voltage of 1.1V at 200mA and a Zener impedance of 13 Ohms at the nominal voltage. These specifications ensure reliable performance in various electronic circuits requiring stable voltage references.

JAN1N964B Quick Information

Product Type: Zener Diode
Series: 1N964
Canonical Name: Microsemi Corporation JAN1N964B Zener Diode
Subcategory: Single Zener Diodes

JAN1N964B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JAN1N964B Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

JAN1N964B Features

  • 13V nominal Zener voltage rating.
  • 500mW maximum power dissipation.
  • ±5% voltage tolerance.
  • Wide -65°C to 175°C operating temperature.
  • Through-hole DO-35 axial package.

JAN1N964B Applications

  • Voltage regulation in military power supplies.
  • Reference voltage in precision analog circuits.
  • Overvoltage protection in avionics systems.
  • Clamping in low-power DC-DC converters.
  • Used in high-reliability defense electronics.

JAN1N964B FAQs

5 frequently asked questions generated from this part’s specifications.
What is the nominal Zener voltage of the JAN1N964B?

The nominal Zener voltage is 13V.

What is the power rating of the JAN1N964B?

The maximum power dissipation is 500mW.

What is the tolerance for the Zener voltage?

The tolerance is ±5%.

What is the operating temperature range for this Zener diode?

The operating temperature range is -65°C to 175°C.

What package type is the JAN1N964B supplied in?

It is supplied in a DO-35 (DO-204AH) axial package with through-hole mounting.
