| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
336 pcs
|
336 pcs | On Request | 1 | On Request | On Request | 0108 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage | |
| Voltage - Reverse (Max) |
The JAN1N5819UR-1 is a Schottky rectifier diode from Microchip Technology designed for high-efficiency rectification in power supply and switching applications. It offers a maximum reverse voltage of 45V and an average rectified current of 1A, with a typical forward voltage drop of only 490mV at 1A, enabling low power dissipation.
This diode features fast recovery characteristics (≤500ns at 200mA) and a junction capacitance of 70pF at 5V and 1MHz, making it suitable for high-frequency switching circuits. The operating junction temperature range spans -65°C to 125°C, ensuring reliable performance across demanding environments.

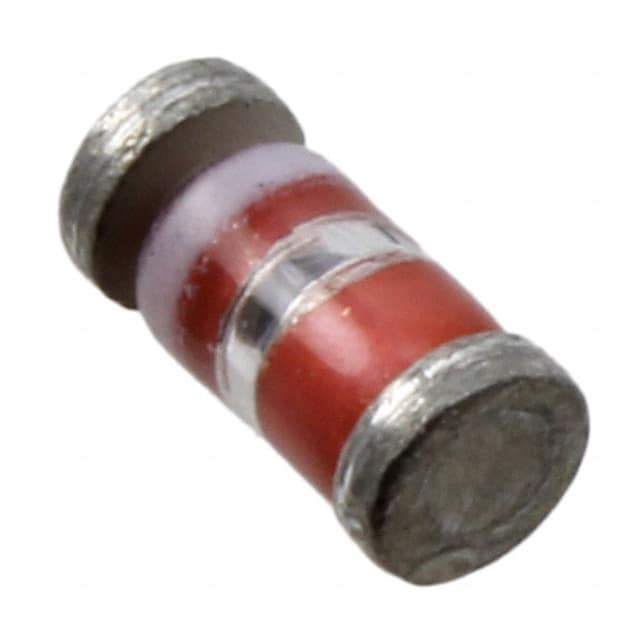

The device is supplied in a surface-mount DO-213AB (MELF, LL41) glass package, which provides excellent hermetic sealing and mechanical robustness. Its compact footprint is ideal for space-constrained designs requiring high reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.12 | $8.12 |
| 10+ | $8.11 | $8.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 45V.
The typical forward voltage drop is 490mV at 1A.
The average rectified current rating is 1A.
It comes in a surface-mount DO-213AB (MELF, LL41) glass package.
The operating junction temperature range is -65°C to 125°C.
The junction capacitance is 70pF at 5V and 1MHz.
The part is listed as RoHS3 compliant, but this status is unverified.
