| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage | |
| Voltage - DC Reverse (Vr) (Max) |

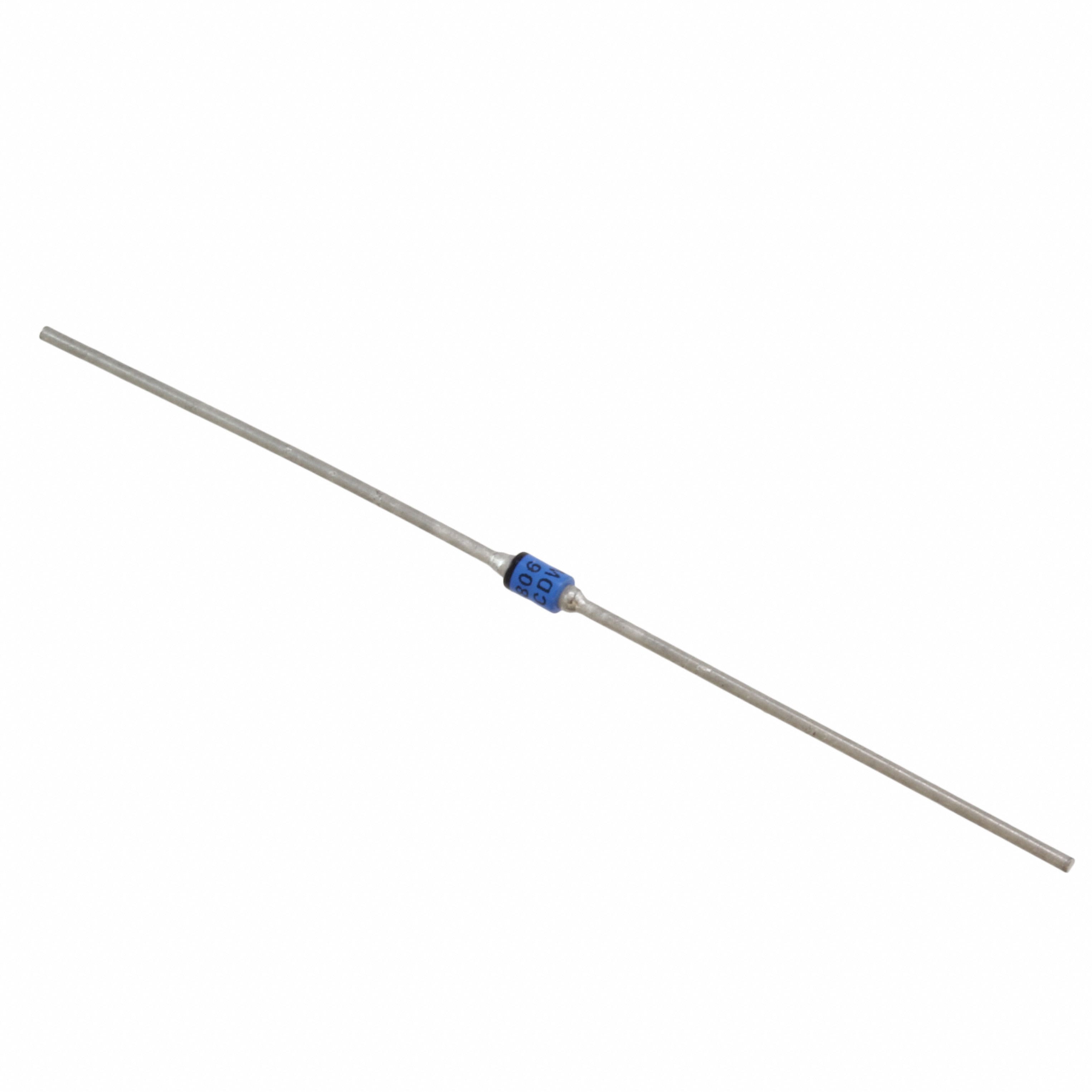

The JAN1N5806 is a standard rectifier diode manufactured by Microchip Technology. It features a maximum reverse voltage of 150V and an average rectified current rating of 2.5A. The forward voltage is 975mV at 2.5A, and the device offers fast recovery with a reverse recovery time of 25ns. Junction capacitance is 25pF at 10V and 1MHz. The operating temperature range spans from -65°C to 175°C.
The diode is housed in an axial through-hole package (A, Axial), making it suitable for traditional PCB mounting. Its fast recovery characteristics make it appropriate for high-speed switching applications such as power supplies, freewheeling diodes, and snubber circuits. The wide temperature range allows use in harsh environments.
Designers should note that compliance data (RoHS, MSL, REACH) is unverified and low confidence. The manufacturer page was inaccessible, and no datasheet is linked. Tariff codes and lead time values are placeholders and should be disregarded.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.63 | $4.63 |
| 10+ | $4.46 | $4.46 |
| 25+ | $4.43 | $4.43 |
| 100+ | $4.30 | $4.30 |
| 1,000+ | $4.29 | $4.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
150V.
2.5A.
975mV at 2.5A.
25ns.
Axial through-hole package (A, Axial).
-65°C to 175°C.
25pF at 10V, 1MHz.
