| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
265 pcs
|
265 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Military Grade | |
| Mounting Type | |
| Number of Pins | |
| Reverse Recovery Time |
The JAN1N5620 is a military-qualified standard recovery rectifier diode manufactured by Micross Components. Designed for high-reliability applications where failure is not an option, this diode series is rated for working peak reverse voltages from 200 to 1000 volts and a 1.0 Amp current rating.
Key electrical characteristics include a typical forward voltage of 1.3V at 3A and a reverse recovery time of 2µs. The operating temperature range is from -65°C to 200°C.
This device is hermetically sealed with voidless glass construction and internal Category I metallurgical bonds. It is available in a through-hole package with 2 pins and a case style designated as A-Package-2. The dimensions are 5.21mm in length. The component is listed as active and supplied in bulk packaging.
The JAN1N5620 is part of the popular JEDEC registered 1N5614 to 1N5622 series and meets RoHS compliance. It is also qualified to MIL-PRF-19500/427, indicating its suitability for demanding military and aerospace applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 1.3V at 3A.
The reverse recovery time is 2µs.
The maximum operating temperature is 200°C.

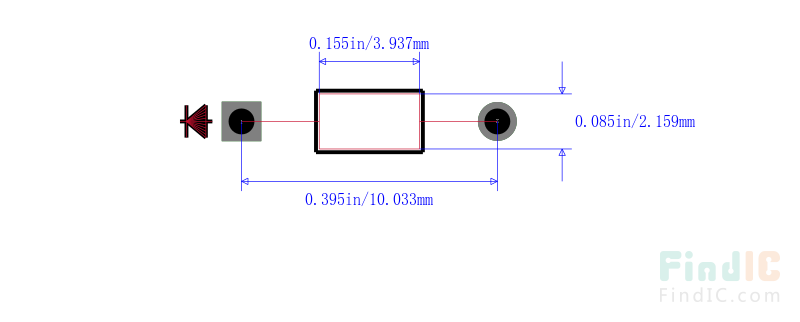

The package is a through hole A-Package-2 with 2 pins.
The working peak reverse voltage is 800V.
The average forward current rating is 1A.
