| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
446 pcs
|
446 pcs | On Request | 1 | On Request | On Request | 0725 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Voltage | |
| Impedance (Max) (Zzt) | |
| Military Qualification | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Dissipation | |
| Reverse Leakage | |
| Supplier Device Package | |
| Tolerance | |
| Voltage | |
| Zener Voltage |

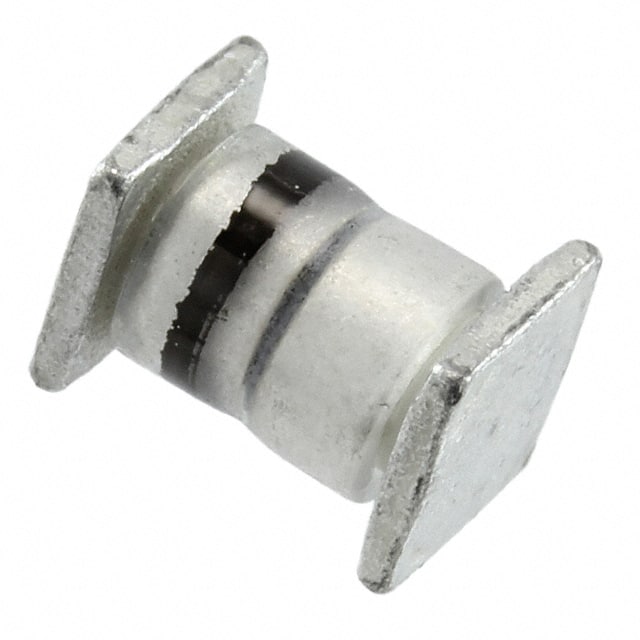

The JAN1N4965US from Microchip Technology is a single Zener diode designed for voltage regulation applications. It offers a nominal Zener voltage of 20V with a tight tolerance of ±5%. The diode can handle a maximum power dissipation of 5W and has a maximum Zener impedance of 4.5 Ohms.
This component operates within a temperature range of -65°C to 175°C. It features a low reverse leakage current of 2 µA at 15.2V and a maximum forward voltage of 1.5V at 1A. The JAN1N4965US is suitable for various electronic circuits requiring stable voltage references.
Designed for surface mounting, the diode comes in a SQ-MELF, E package, also identified as D-5B by the supplier. Its military qualification is MIL-PRF-19500/356, indicating its suitability for demanding applications. The component is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 20V.
The maximum power dissipation is 5W.
The tolerance is ±5%.
The operating temperature range is -65°C to 175°C.
It is in a SQ-MELF, E package, also known as D-5B.
It is supplied in tape and reel packaging.
