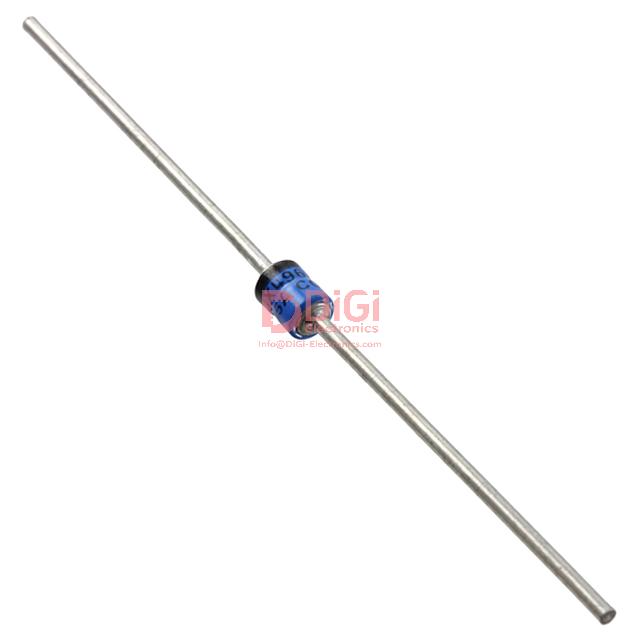

JAN1N4957 The Microchip Technology JAN1N4957 is a Zener Diode with a nominal voltage of 9.1V and a power rating of 5W. It features a ±5% tolerance and is housed in an axial package.
Mfr Part #:

JAN1N4957

Available from 1 distributors
Mfr Name: Microsemi Corporation
Microsemi Corporation
The Microchip Technology JAN1N4957 is a Zener Diode with a nominal voltage of 9.1V and a power rating of 5W. It features a ±5% tolerance and is housed in an axial package.
✓ Total Stock: 300 pcs
$ Price Range: $0.99

JAN1N4957 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JAN1N4957 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Grade
Military Grade
Mounting Type
Operating Temperature
SVHC Present
Storage Temperature
Tolerance
View Similar Products (0)

JAN1N4957 Description

Short technical summary and product information.

The JAN1N4957 from Microchip Technology is a single Zener diode designed for voltage regulation applications. It offers a nominal Zener voltage of 9.1V with a tolerance of ±5% and can dissipate up to 5W of power.



This diode is rated for military-grade applications and operates within a temperature range of -65°C to 175°C. It features a low reverse leakage current of 25 µA at 6.9V and a forward voltage of 1.5V at 1A.



The component is designed for through-hole mounting and comes in an axial package (E, Axial). Its qualification under MIL-PRF-19500/356 indicates suitability for demanding environments.



Key electrical characteristics include a Zzt impedance of 2 Ohms. The product is classified under the Diodes - Zener - Single category.

JAN1N4957 Quick Information

Product Type: Zener Diode
Series: 1N4957
Canonical Name: Microchip Technology JAN1N4957 Zener Diode
Subcategory: Single Zener Diodes

JAN1N4957 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JAN1N4957 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

JAN1N4957 Features

  • 9.1V nominal Zener voltage rating.
  • 5W maximum power dissipation.
  • ±5% voltage tolerance.
  • Military grade qualification.
  • Through-hole axial package.

JAN1N4957 Applications

  • Voltage regulation circuits.
  • Power supply stabilization.
  • Reference voltage generation.
  • Protection circuits.

JAN1N4957 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the nominal Zener voltage of the JAN1N4957?

9.1 V

What is the tolerance of the Zener voltage?

±5%

What is the maximum power dissipation?

5 W

What is the maximum impedance?

2 Ohms

What is the reverse leakage current?

25 µA at 6.9 V

What is the operating temperature range?

-65°C to 175°C

What military specification does this part meet?

MIL-PRF-19500/356
