| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Voltage | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Pins | |
| Power Dissipation | |
| Tolerance |
The JAN1N4954 is a 5 Watt Zener Voltage Regulator from SEMICON, designed for high-reliability applications. It features a nominal Zener voltage of 6.8V with a tolerance of ±5% and a power dissipation rating of 5W. The operating temperature range is from -65°C to 175°C.
This device is constructed with a voidless, hermetically sealed glass package and internal metallurgical bonds, ensuring extreme robustness. It is suitable for through-hole mounting and comes in an E-Package-2 configuration. The forward voltage is typically 1.5V at 1A, and the test current for the Zener voltage is 175 mA.
This series is military qualified to MIL-PRF-19500/356, making it ideal for applications where failure is not an option. It offers voltage regulation over a broad operating current and temperature range. Surface mount equivalents are also available.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6.8V nominal at 175mA test current.
5W maximum.
1.5V typical at 1A.
-65°C to 175°C.
±5%.

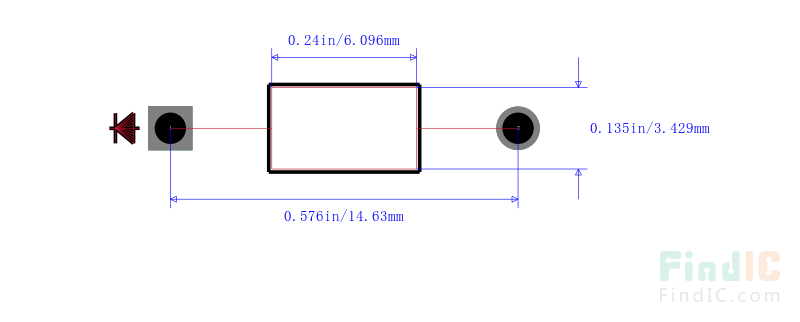

Through Hole E-Package-2 with 2 pins, length 6.1mm.
175mA.
