| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Voltage | |
| Impedance | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| Supplier Device Package | |
| Tolerance |

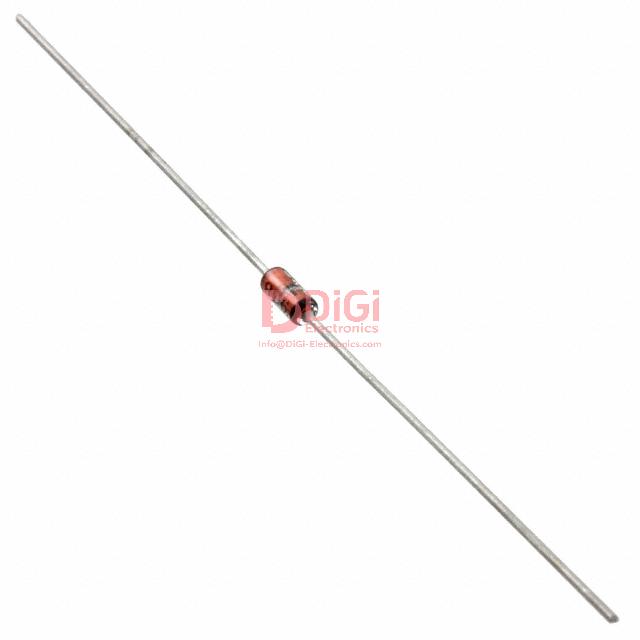

The JAN1N4470C from Microsemi Corporation is a single Zener diode designed for voltage regulation applications. It offers a nominal Zener voltage of 16V with a tight tolerance of ±2%. The diode has a maximum power dissipation of 1.5W and a low reverse leakage current of 50 nA at 12.8V.
This component features a maximum forward voltage of 1V at 200 mA. It operates within a temperature range of -65°C to 175°C. The Zener diode is housed in a DO-41 axial package and is suitable for through-hole mounting.
Key electrical characteristics include an impedance of 10 Ohms at the Zener test current. The JAN1N4470C is suitable for various electronic circuits requiring stable voltage reference.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 16 V.
The maximum power dissipation is 1.5 W.
The tolerance is ±2%.
The operating temperature range is -65°C to 175°C.
It is in a DO-41 axial package suitable for through-hole mounting.
