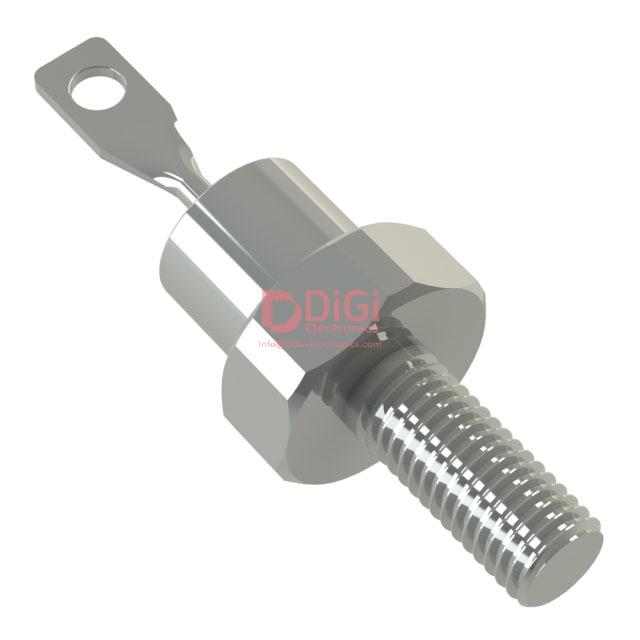

JAN1N3008B The Microchip Technology JAN1N3008B is a Zener diode with a nominal voltage of 120V and a power rating of 10W. It features a ±5% tolerance and a stud mount package.
Mfr Part #:

JAN1N3008B

Available from 1 distributors
Mfr Name: Siemens
Siemens
The Microchip Technology JAN1N3008B is a Zener diode with a nominal voltage of 120V and a power rating of 10W. It features a ±5% tolerance and a stud mount package.
✓ Total Stock: 37 pcs
$ Price Range: $0.02

JAN1N3008B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
37 pcs
On Request
37 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JAN1N3008B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Military Grade
Mounting Type
Operating Temperature
Storage Temperature
Supplier Device Package
Tolerance
View Similar Products (0)

JAN1N3008B Description

Short technical summary and product information.

The JAN1N3008B from Microchip Technology is a single Zener diode designed for voltage regulation applications. It offers a nominal Zener voltage of 120V with a tight tolerance of ±5%, ensuring stable voltage output.



This diode has a maximum power dissipation of 10W, making it suitable for moderate power applications. The Zener impedance is rated at a maximum of 75 Ohms, and it exhibits a low reverse leakage current of 10 µA at 91.2V. The forward voltage is a maximum of 1.5V at 2A.



Designed for robust performance, the JAN1N3008B operates across a wide temperature range from -65°C to 175°C. It meets military qualification standards, specifically MIL-PRF-19500/124. The component is housed in a stud mount package, identified as DO-213AA (DO-4), facilitating easy integration into various electronic circuits.



Environmental compliance includes REACH Unaffected status, RoHS3 Compliant, and MSL 1 Unlimited. This Zener diode is a reliable choice for applications requiring precise voltage regulation and adherence to military specifications.

JAN1N3008B Quick Information

Product Type: Zener Diode
Series: JAN1N3008
Canonical Name: Microchip Technology JAN1N3008B Zener Diode
Subcategory: Single Zener Diodes

JAN1N3008B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JAN1N3008B Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

JAN1N3008B Features

  • 120V nominal Zener voltage.
  • 10W maximum power dissipation.
  • ±5% voltage tolerance.
  • Wide -65°C to 175°C operating temperature.
  • Military qualified to MIL-PRF-19500/124.

JAN1N3008B Applications

  • Voltage regulation circuits.
  • Power supply stabilization.
  • Protection circuits.
  • Military and aerospace applications.

JAN1N3008B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the nominal Zener voltage of the JAN1N3008B?

The nominal Zener voltage is 120V.

What is the Zener voltage tolerance?

The Zener voltage tolerance is ±5%.

What is the maximum power dissipation of the JAN1N3008B?

The maximum power dissipation is 10W.

What is the maximum Zener impedance?

The maximum Zener impedance is 75Ω.

What is the reverse leakage current at 91.2V?

The reverse leakage current is 10µA at 91.2V.

What is the maximum forward voltage at 2A?

The maximum forward voltage is 1.5V at a forward current of 2A.

What package is the JAN1N3008B available in?

The JAN1N3008B is available in a DO-203AA (DO-4) stud mount package.
