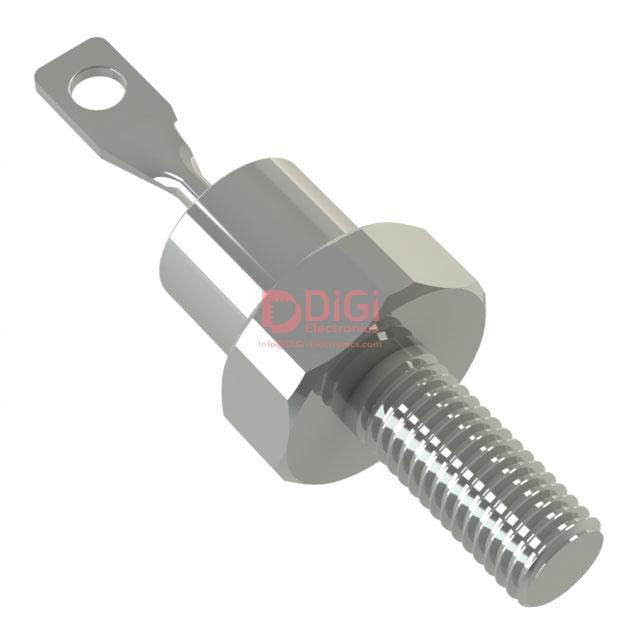

JAN1N2989RB The JAN1N2989RB is a Zener Diode from Microchip Technology with a 30V nominal voltage and 10W power rating. It features a Stud Mount package.
Mfr Part #:

JAN1N2989RB

Available from 1 distributors
Mfr Name: NAE
NAE
The JAN1N2989RB is a Zener Diode from Microchip Technology with a 30V nominal voltage and 10W power rating. It features a Stud Mount package.
✓ Total Stock: 1 pcs
$ Price Range: $0.02

JAN1N2989RB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JAN1N2989RB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Grade
Impedance
Military Grade
Mounting Type
Operating Temperature
SVHC Present
Supplier Device Package
Tolerance
View Similar Products (0)

JAN1N2989RB Description

Short technical summary and product information.

The JAN1N2989RB is a Zener Diode manufactured by Microchip Technology, designed for voltage regulation applications. It offers a nominal Zener voltage of 30V with a tolerance of ±5% and a maximum power dissipation of 10W.



This diode has a low reverse leakage current of 10 µA at 22.8V and a maximum forward voltage of 1.5V at 2A. It operates within a wide temperature range of -65°C to 175°C.



The component is qualified to MIL-PRF-19500/124 standards and features a Stud Mount package, specifically DO-203AA, DO-4, Stud (Supplier Device Package: DO-213AA (DO-4)). Its military-grade classification makes it suitable for demanding applications.



Environmental compliance data indicates RoHS non-compliant status, REACH unaffected, and MSL 1 Unlimited. These specifications are based on available data and should be reviewed for specific application requirements.

JAN1N2989RB Quick Information

Product Type: Zener Diode
Canonical Name: JAN1N2989RB Zener Diode
Subcategory: Single Zener Diodes

JAN1N2989RB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JAN1N2989RB Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

JAN1N2989RB Features

  • 30V nominal Zener voltage rating.
  • 10W maximum power dissipation.
  • ±5% voltage tolerance.
  • Wide -65°C to 175°C operating temperature.
  • Military grade qualification (MIL-PRF-19500/124).

JAN1N2989RB Applications

  • Voltage regulation circuits.
  • Power supply stabilization.
  • Reference voltage generation.
  • High-reliability applications.

JAN1N2989RB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of the JAN1N2989RB?

The nominal Zener voltage is 30V.

What is the power dissipation rating of the JAN1N2989RB?

The maximum power dissipation is 10W.

What is the tolerance of the Zener voltage?

The tolerance is ±5%.

What is the forward voltage of the JAN1N2989RB?

The maximum forward voltage is 1.5V at 2A.

What is the operating temperature range?

The operating temperature range is -65°C to 175°C.

What package does the JAN1N2989RB come in?

It is available in a DO-203AA (DO-4) stud mount package.

Is the JAN1N2989RB qualified to a military standard?

Yes, it is qualified to MIL-PRF-19500/124.
