| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage | |
| Voltage - Forward (Vf) (Max) @ If |
The JAN1N1188 is a standard recovery rectifier diode manufactured by Microchip Technology. It is designed for general purpose rectification applications requiring a reverse voltage rating of 400V and an average forward current of 35A.
The diode features a forward voltage drop of 1.4V at 110A, ensuring efficient power conversion in high-current circuits. It is classified as a fast recovery device with recovery time less than 500ns for currents above 200mA, making it suitable for moderate-speed switching applications.

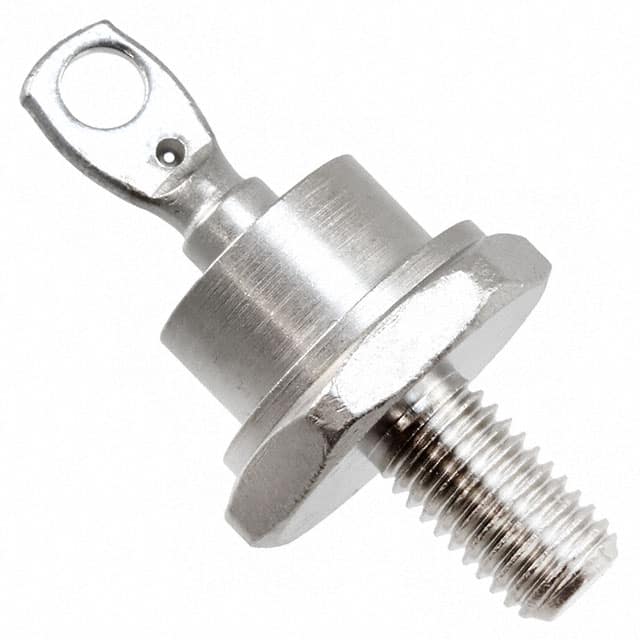

The device is housed in a DO-203AB (DO-5) stud mount package, which provides robust mechanical mounting and excellent thermal performance. The operating temperature range spans from -65°C to 175°C, allowing reliable operation in harsh environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $53.48 | $53.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage (Vr) is 400V.
The average rectified current (Io) is 35A.
The maximum forward voltage (Vf) is 1.4V at a test current of 110A.
It comes in a DO-203AB (DO-5) stud mount package.
The operating temperature range is -65°C to 175°C.
