J8064E64NL The Pulse Electronics J8064E64NL is a 4-port RJ45 tab-down through hole jack with integrated magnetics. It features a 1CT:1CT turns ratio, shielded construction with EMI finger, and a 2250 VDC hipot rating.
Mfr Part #:

J8064E64NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics J8064E64NL is a 4-port RJ45 tab-down through hole jack with integrated magnetics. It features a 1CT:1CT turns ratio, shielded construction with EMI finger, and a 2250 VDC hipot rating.
✓ Total Stock: 121 pcs
$ Price Range: $18.34

J8064E64NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
121 pcs
On Request
121 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

J8064E64NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Connector Type
Contact Finish
Contact Material
Durability
Features
Height Above Board
Housing Material
LED Color
Lead Style
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Operating Temperature
Orientation
SVHC Present
Shielding
Storage Temperature
Tab Direction
Tape & Reel
Termination
Turns Ratio
View Similar Products (0)

J8064E64NL Description

Short technical summary and product information.

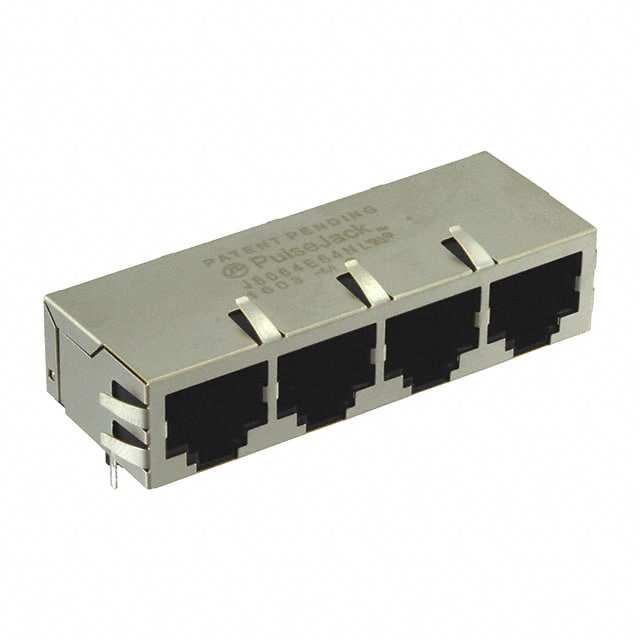

The Pulse Electronics J8064E64NL is a 4-port RJ45 tab-down modular connector jack with integrated magnetics, part of the PulseJack family. It is designed for through hole mounting with solder termination and features a shielded construction with an EMI finger for enhanced electromagnetic interference suppression.



This connector supports 10/100 Base-TX and AutoMDIX applications and meets the IEEE 802.3 specification. It has a 1CT:1CT turns ratio and a typical insertion loss of -1.0 dB for TX/RX. The minimum hipot rating is 2250 VDC at 50/60 Hz for 1 minute. The operating temperature range is 0°C to +70°C.



The housing is made of thermoplastic rated UL 94 V-0, and the contacts are phosphor bronze with a gold finish. The shield contact material is brass with a nickel finish. The connector includes a board guide feature and has a height above board of 0.536 inches (13.61 mm).

J8064E64NL Quick Information

Product Type: Modular Connector Jack with Magnetics
Series: J8064E64NL
Canonical Name: Pulse Electronics J8064E64NL 4-Port RJ45 Tab-Down Through Hole Jack with Magnetics
Subcategory: RJ45 Jack with Magnetics

J8064E64NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

J8064E64NL Estimated Pricing

Qty Low High
105+ $18.34 $18.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

J8064E64NL Features

  • 4-port RJ45 tab-down connector with integrated magnetics.
  • Shielded construction with EMI finger for EMI suppression.
  • 1CT:1CT turns ratio for 10/100 Base-TX applications.
  • Through hole mounting with solder termination.
  • Rated for 750 insertion cycles durability.

J8064E64NL Applications

  • Ideal for 10/100 Base-TX Fast Ethernet applications.
  • Suitable for LAN-on-motherboard (LOM) designs.
  • Used in hubs and network switches.
  • Designed for SOHO ADSL modem equipment.

J8064E64NL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the turns ratio of the J8064E64NL?

The turns ratio is 1CT:1CT.

What is the operating temperature range?

The operating temperature range is 0°C to +70°C.

What is the hipot rating?

The minimum hipot rating is 2250 VDC at 50/60 Hz for 1 minute.

What is the mounting type?

The mounting type is through hole with solder termination.

Is the J8064E64NL shielded?

Yes, it is shielded and includes an EMI finger.

What is the insertion loss?

The typical insertion loss for TX/RX is -1.0 dB.

What is the durability rating?

The connector is rated for 750 insertions.
