J8064D649P 4-port RJ45 modular jack with magnetics from Pulse Electronics. Through hole mount, shielded with EMI finger, 90° right angle orientation, tab down.
Mfr Part #:

J8064D649P

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
4-port RJ45 modular jack with magnetics from Pulse Electronics. Through hole mount, shielded with EMI finger, 90° right angle orientation, tab down.
✓ Total Stock: 60 pcs

J8064D649P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
60 pcs
On Request
60 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

J8064D649P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Connector Type
Contact Finish
Contact Material
Features
Height Above Board
LED Color
Lead Style
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Operating Temperature
Orientation
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

J8064D649P Description

Short technical summary and product information.

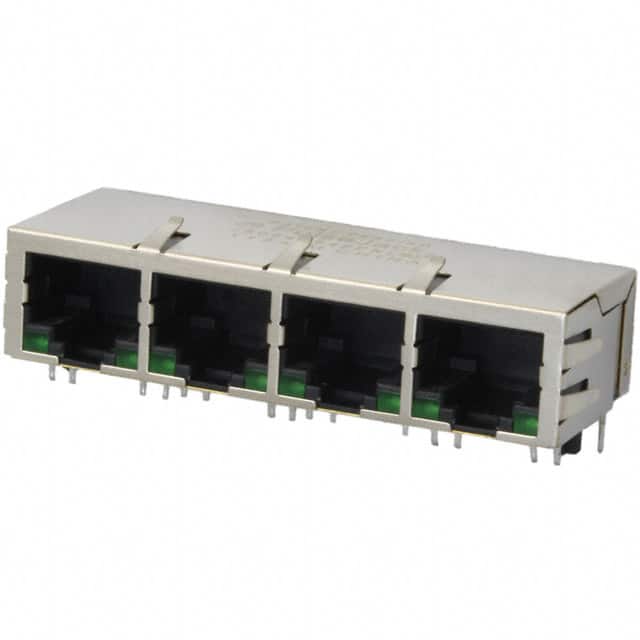

The J8064D649P is a 4-port RJ45 modular jack with integrated magnetics manufactured by Pulse Electronics. It features a through hole mounting style with solder termination and a 90° right angle orientation with tab down. The connector is shielded with an EMI finger for improved electromagnetic compatibility. Each port contains 4 cores, and the contacts are gold-plated phosphor bronze for reliable electrical performance. The height above the board is 0.536" (13.61mm).



This jack includes a board guide feature and dual green LED indicators. It is designed for 10/100 Base-TX Ethernet applications with AutoMDIX support, operating over a temperature range of 0°C to 70°C. The single-row design accommodates four ports in a compact footprint.

J8064D649P Quick Information

Product Type: Modular Connector Jack with Magnetics
Canonical Name: 4-Port RJ45 Modular Jack with Magnetics, Through Hole, Shielded
Subcategory: RJ45 Connector

J8064D649P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

J8064D649P Features

  • Four-port RJ45 modular jack with magnetics.
  • Through hole mounting with solder termination.
  • Shielded design with EMI finger for noise reduction.
  • Gold-plated contacts for reliable connectivity.
  • Supports 10/100 Base-TX and AutoMDIX.

J8064D649P Applications

  • Used in Ethernet networking equipment for 10/100 Base-TX connections.
  • Suitable for switches, routers, and industrial controls.
  • AutoMDIX support simplifies crossover detection.

J8064D649P FAQs

7 frequently asked questions generated from this part’s specifications.
How many ports does this connector have?

This connector has 4 ports.

What is the mounting type?

Through hole.

What is the connector orientation?

90° angle (right) with tab down.

Is this connector shielded?

Yes, it is shielded with an EMI finger.

What is the contact finish?

Gold.

What is the operating temperature range?

0°C to 70°C.

What applications is this connector designed for?

10/100 Base-TX with AutoMDIX.
