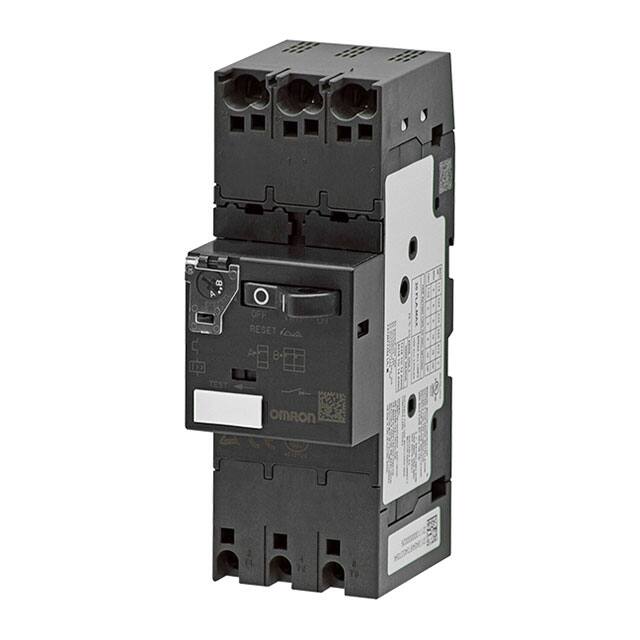

The Omron J7MC-3P-2E5 is a manual motor starter (MPCB) from the J7MC Series, designed for motor protection against overload, phase failure, and short circuits. It features a 2.5A current rating and a voltage rating of 690VAC.
This starter utilizes Push-In Plus wiring technology for reduced wiring and maintenance time. It is ideal for controlling motors up to AC-3 class, 2.2 kW at 200-240 VAC or 5.5 kW at 380-440 VAC when used in combination with a magnetic contactor model J7KC. The unit has a high breaking capacity of up to 100 kA at 440 VAC.
Designed for easy installation, the J7MC-3P-2E5 is suitable for DIN rail mounting. It features a rocker switch for operation and a dial cover to prevent accidental setting changes. The starter can also be locked with a padlock for safety during startup. It is certified to comply with major safety standards including CCC, CE, CSA, cULus, and TUV.
690VAC.
2.5A.
3 poles.
DIN Rail.
100kA at 440VAC.
Up to 2.2kW at 200-240VAC and 5.5kW at 380-440VAC (AC-3 class).
CCC, CE, CSA 22.2 No. 60947-4-1, cULus, EN60947-2, GB/T 14048.2, IEC60947-2, PSE, TUV, UL60947-4-1.
