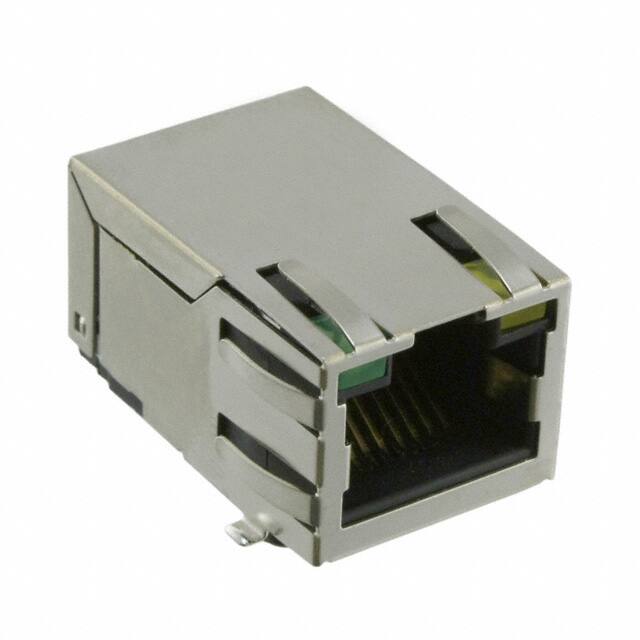

The Pulse Electronics J3026G21DNL is a single-port, surface-mount RJ45 connector designed for 10/100 Base-TX Ethernet applications. This connector integrates magnetics for high performance and EMI suppression, meeting IEEE 802.3 specifications with a minimum 1500Vrms isolation.
Key electrical specifications include insertion loss and return loss across various frequencies, ensuring reliable data transmission. The connector is constructed with a phosphor bronze contact material and a gold contact finish for durability and conductivity. It features a shielded design with an EMI finger for enhanced signal integrity.
Designed for ease of integration, the J3026G21DNL has a 90° angle orientation and a tab-up direction, with a height of 13.61mm above the board. The operating temperature range is 0°C to 70°C. It is RoHS3 compliant and has an MSL 1 rating.
This connector is suitable for applications such as Set Top Boxes and Network Interface Cards (NICs), providing a robust and cost-effective solution for networking interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is 0°C to 70°C.
The J3026G21DNL connector uses surface mount technology.
The contact material is phosphor bronze with a gold finish.
Yes, the J3026G21DNL connector is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1.
