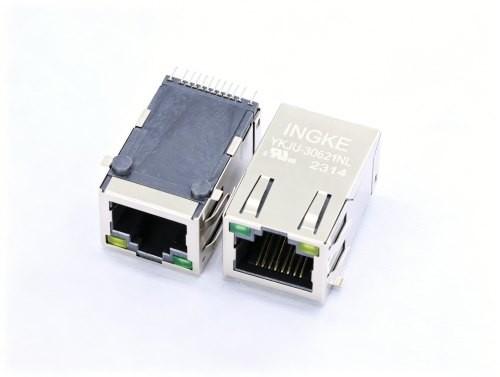

J3026G21D is a 1-port RJ45 connector with integrated magnetics from Pulse Electronics. It is designed for 10/100 Base-TX Ethernet applications and features a surface mount (SMT) solder termination. The connector is shielded with an EMI finger for enhanced electromagnetic interference suppression. It includes a board guide for alignment during assembly. The housing is made of high temperature thermoplastic (UL 94 V-0) and the contacts are phosphor bronze with gold plating. The connector supports up to 750 insertions and a minimum retention force of 20 lbs. The integrated magnetics are electrically tested for hi-pot and continuity, meeting IEEE 802.3i/u standards. The turns ratio is 1CT:1 for both transmit and receive channels. The connector provides a minimum isolation voltage of 1500 Vrms. The operating temperature range is 0°C to 70°C. Green and Yellow LED indicators are included. The tab direction is up. This connector is suitable for set top boxes and network interface cards. It is available in tape and reel packaging (optional). The part is RoHS compliant (unverified) and the housing is UL 94 V-0 rated.
Surface Mount.
RJ45.
1.
Yes, shielded with EMI finger.
Green and Yellow.
0°C to 70°C.
1500 Vrms.
