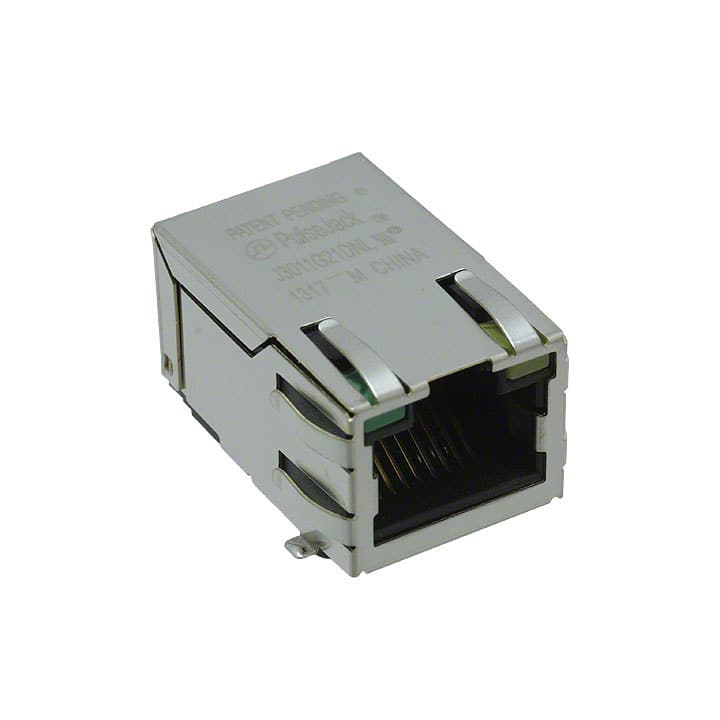

The Pulse Electronics J3011G21DNL is a single-port (1x1) RJ45 jack with integrated magnetics from the PulseJack series, designed for 100 Base-TX Fast Ethernet applications. This surface mount connector features a tab-up orientation and is fully shielded with a brass shield and nickel finish for enhanced EMI suppression.
Electrical specifications include a 1CT:1 turns ratio for both TX and RX channels, a maximum insertion loss of -1.0 dB, and a minimum return loss of -20 dB from 1 to 10 MHz. The part provides a minimum of 1500 Vrms isolation voltage per IEEE 802.3 requirements. Common mode rejection is rated at -30 dB minimum from 1 to 50 MHz.
The connector is housed in a high-temperature thermoplastic rated UL 94 V-0 and is RoHS compliant with an MSL of 1. It supports an operating temperature range of 0°C to 70°C with an extended range of -40°C to 85°C. The J3011G21DNL includes a board guide feature and is terminated via solder to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.43 | $9.43 |
| 10+ | $8.45 | $8.45 |
| 25+ | $7.56 | $7.56 |
| 45+ | $7.26 | $7.26 |
| 90+ | $7.05 | $7.05 |
| 270+ | $6.72 | $6.72 |
| 540+ | $6.40 | $6.40 |
| 1,035+ | $6.31 | $6.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The standard operating temperature range is 0°C to 70°C, with an extended range of -40°C to 85°C.
The minimum isolation voltage is 1500 Vrms per IEEE 802.3 requirement.
Yes, the J3011G21DNL is RoHS compliant with a peak wave reflow temperature rating of 245°C.
The J3011G21DNL is a surface mount component with solder termination.
The connector features green and yellow LEDs.
The jack is rated for 750 insertions (plug to jack).
