J20-0014NL 8 port RJ45 connector with integrated magnetics, through hole mounting, shielded with EMI finger, for 10/100 Base-TX applications.
Mfr Part #:

J20-0014NL

Available from 2 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
8 port RJ45 connector with integrated magnetics, through hole mounting, shielded with EMI finger, for 10/100 Base-TX applications.
✓ Total Stock: 412 pcs

J20-0014NL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
206 pcs
On Request
206 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
206 pcs
On Request
206 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

J20-0014NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Connector Type
Contact Finish
Contact Material
Features
Height Above Board
LED Color
Lead Style
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Operating Temperature
Orientation
Shielding
Tab Direction
Tape & Reel
Termination
Termination Style
View Similar Products (0)

J20-0014NL Description

Short technical summary and product information.

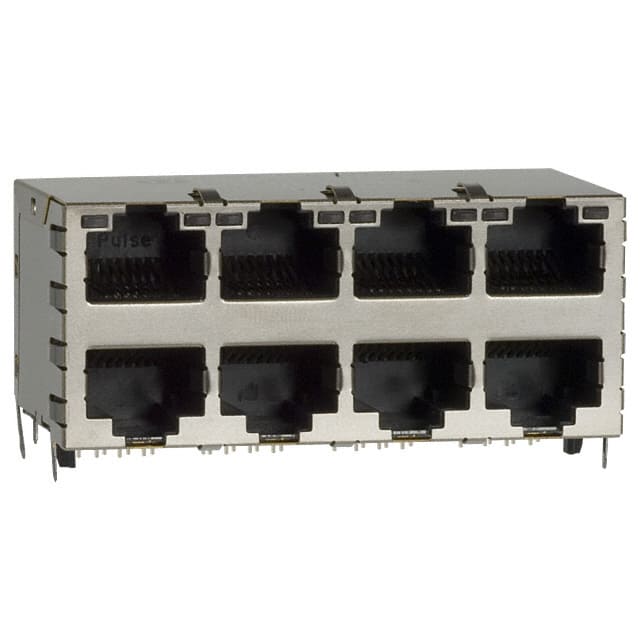

The J20-0014NL is an 8-port RJ45 connector with integrated magnetics from Pulse Electronics, part of the PulseJack 2xN series. It features through hole mounting with solder termination and a shielded design with EMI finger for enhanced electromagnetic interference suppression. The connector supports 10/100 Base-TX Fast Ethernet and AutoMDIX, with bi-color LEDs (green/yellow) per port for link/activity indication.



Electrical performance includes typical insertion loss of -1.0 dB from 1-65 MHz, return loss of -20 dB at 1-10 MHz, common mode rejection of -40 dB at 1-30 MHz, and crosstalk of -30 dB at 1-50 MHz. The integrated magnetics provide a minimum open circuit inductance of 350 µH with 8 mA bias current. The connector is rated for 750 insertion cycles with a maximum mating/unmating force of 5 lbf.



Mechanically, the connector has a height above board of 1.005" (25.53 mm), tab direction up and down, and a board guide feature. It operates over a temperature range of 0°C to 70°C and is RoHS compliant with a peak wave solder temperature rating of 260°C.

J20-0014NL Quick Information

Product Type: Modular Connector Jack with Magnetics
Series: J2
Canonical Name: Pulse Electronics J20-0014NL 8 Port RJ45 Connector with Magnetics
Subcategory: 8 Port

J20-0014NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

J20-0014NL Features

  • 8 port RJ45 connector with integrated magnetics.
  • Through hole mounting with solder termination.
  • Shielded with EMI finger for noise suppression.
  • Supports 10/100 Base-TX and AutoMDIX.
  • Operating temperature range 0°C to 70°C.

J20-0014NL Applications

  • Used in Fast Ethernet switch and gateway applications.
  • Suitable for 10/100 Base-TX network interfaces.
  • Ideal for PCB designs requiring integrated magnetics.

J20-0014NL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type of the J20-0014NL?

Through hole mounting with solder termination.

How many ports does the J20-0014NL have?

8 ports.

What is the operating temperature range?

0°C to 70°C.

What LED colors are available?

Green and yellow per port.

Is the connector shielded?

Yes, shielded with EMI finger.

What applications is the J20-0014NL suitable for?

10/100 Base-TX Fast Ethernet and AutoMDIX applications.

What is the typical insertion loss?

-1.0 dB typical from 1-65 MHz.
