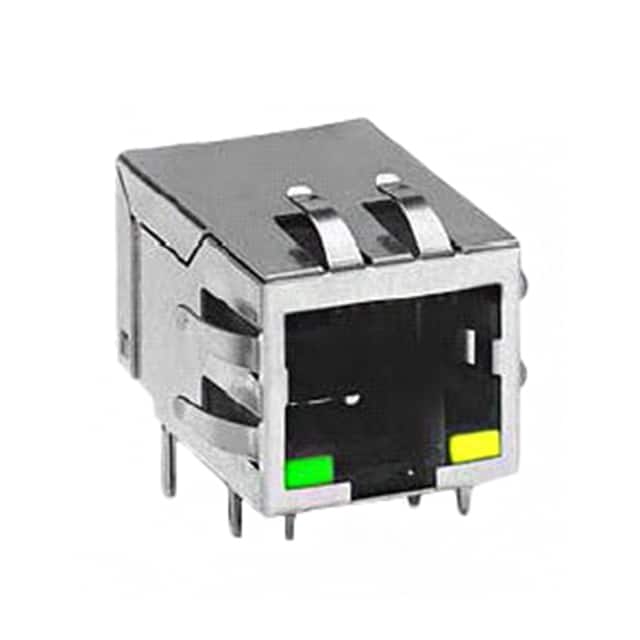

J1B1211CCD Single port RJ45 connector with integrated 10/100 Base-T magnetics, through hole mount, right angle orientation, and LED indicators.
Mfr Part #:

J1B1211CCD

Available from 2 distributors
Mfr Name: WIZnet
WIZnet
Single port RJ45 connector with integrated 10/100 Base-T magnetics, through hole mount, right angle orientation, and LED indicators.
✓ Total Stock: 109 pcs

J1B1211CCD Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
108 pcs
On Request
108 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

J1B1211CCD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Connector Type
Contact Finish
Contact Material
Crosstalk
Durability
Features
HI-POT
Halogen Free
Height Above Board
Housing Material
Industrial Grade
Insertion Loss
LED Color
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Operating Temperature
Orientation
SVHC Present
Shielding
Standards
Storage Temperature
Tab Direction
Termination
View Similar Products (0)

J1B1211CCD Description

Short technical summary and product information.

The J1B1211CCD is a single port RJ45 connector module with integrated magnetics and dual LEDs, manufactured by WIZnet. It is designed for 10/100 Base-T Ethernet applications and supports AutoMDIX. The connector features a through hole mounting style with a 90° right angle orientation, tab down, and includes a shielded EMI finger for electromagnetic compatibility. The housing is made of UL94V-0 rated thermoplastic, and the contact material is phosphor bronze with selective gold plating. Electrical specifications include a turns ratio of 1CT:1CT for both TX and RX, minimum OCL of 350 µH at 8 mA bias, and a minimum isolation voltage of 1500 Vrms. It operates over a temperature range of -40°C to +85°C and is RoHS compliant.

J1B1211CCD Quick Information

Product Type: Modular Connector Jack with Magnetics
Series: J1B1211CCD
Canonical Name: RJ45 Connector Jack with Integrated Magnetics and LEDs
Subcategory: Single Port

J1B1211CCD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

J1B1211CCD Features

  • Single port RJ45 with integrated magnetics.
  • Through hole mounting, 90° right angle orientation.
  • Shielded with EMI finger for EMI protection.
  • Green and yellow LED indicators per port.
  • RoHS compliant and UL94V-0 rated housing.

J1B1211CCD Applications

  • 10/100 Base-T Ethernet networking equipment.
  • Industrial control and automation systems.
  • PoE (Power over Ethernet) applications.
  • Consumer electronics with Ethernet connectivity.

J1B1211CCD FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type of the J1B1211CCD?

The J1B1211CCD uses through hole mounting.

What is the orientation of this connector?

It has a 90° angle (right) orientation with tab down.

What LED colors are available?

The left LED is green and the right LED is yellow.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

Is the J1B1211CCD shielded?

Yes, it is shielded with an EMI finger.

What is the insertion loss specification?

Insertion loss is -1.0 dB maximum from 1 to 100 MHz.

What is the durability rating?

The connector is rated for a minimum of 750 insertions.
