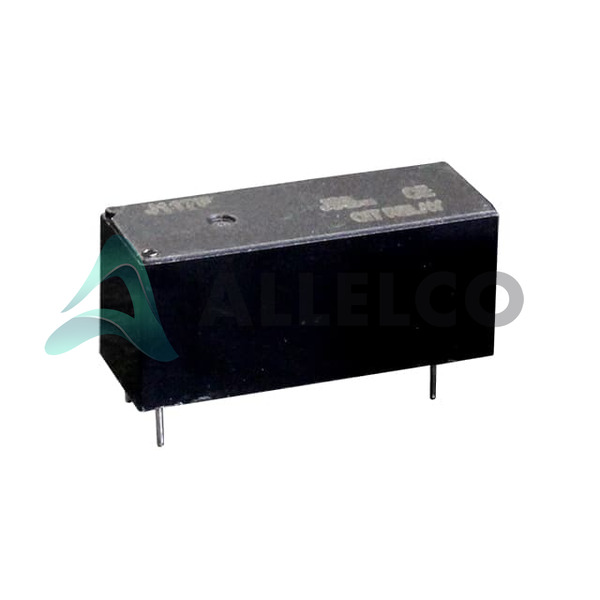

J117F1AS12VDC The CIT Relay and Switch J117F1AS12VDC is a general purpose power relay with a 10A contact rating and a 12VDC coil. It features a SPST-NO contact form and is designed for through-hole mounting.
Mfr Part #:

J117F1AS12VDC

Available from 1 distributors
Mfr Name: CIT Relay and Switch
CIT Relay and Switch
The CIT Relay and Switch J117F1AS12VDC is a general purpose power relay with a 10A contact rating and a 12VDC coil. It features a SPST-NO contact form and is designed for through-hole mounting.
✓ Total Stock: 8 pcs
$ Price Range: $2.00

J117F1AS12VDC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

J117F1AS12VDC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Insulation
Coil Type
Coil Voltage
Contact Form
Contact Material
Contact Rating (Current)
Mounting Type
Must Operate Voltage
Must Release Voltage
Operate Time
Operating Temperature
Relay Type
Release Time
Seal Rating
Switching Voltage
Termination Style
View Similar Products (0)

J117F1AS12VDC Description

Short technical summary and product information.

This CIT Relay and Switch J117F1AS12VDC is a general purpose power relay designed for applications requiring a robust switching solution. It operates with a 12VDC coil and has a non-latching coil type. The relay features a SPST-NO (1 Form A) contact configuration, capable of switching up to 10A of current and voltages up to 400VAC or 150VDC.



The contact material is Silver Tin Oxide (AgSnO), known for its durability and reliability. The relay has an operate time of 10ms and a release time of 5ms, ensuring efficient switching performance. It is sealed for protection and can operate within a wide temperature range of -55°C to 125°C.



Designed for through-hole mounting with PC pin termination, this relay is suitable for various PCB applications. The coil insulation is rated Class F, providing enhanced safety and performance. Its robust construction and specifications make it a reliable choice for demanding environments.

J117F1AS12VDC Quick Information

Product Type: Power Relay
Canonical Name: CIT Relay and Switch J117F1AS12VDC General Purpose Relay
Subcategory: Power Relay

J117F1AS12VDC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

J117F1AS12VDC Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

J117F1AS12VDC Features

  • 10A contact rating for power switching.
  • 12VDC coil voltage for control.
  • SPST-NO contact form.
  • Wide -55°C to 125°C operating temperature.
  • Through-hole mounting for PCB assembly.

J117F1AS12VDC Applications

  • Suitable for general purpose switching.
  • Ideal for power control circuits.
  • Used in PCB-based automation.
  • Reliable in harsh temperature conditions.

J117F1AS12VDC FAQs

5 frequently asked questions generated from this part’s specifications.
What is the coil voltage for the J117F1AS12VDC relay?

The coil voltage for the J117F1AS12VDC relay is 12VDC.

What is the contact current rating of the J117F1AS12VDC relay?

The contact current rating of the J117F1AS12VDC relay is 10A.

What type of contact form does the J117F1AS12VDC relay have?

The J117F1AS12VDC relay has a SPST-NO (1 Form A) contact form.

What is the operating temperature range for this relay?

The operating temperature range for this relay is -55°C to 125°C.

How is the J117F1AS12VDC relay mounted?

The J117F1AS12VDC relay is mounted using the Through Hole method.
