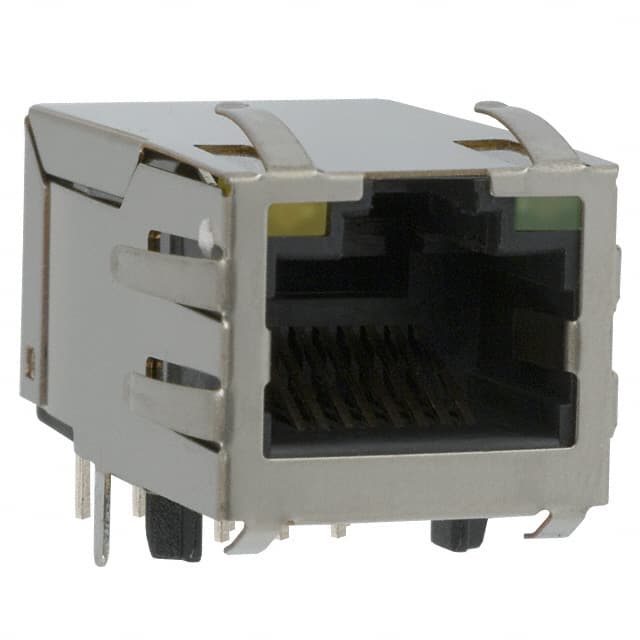

The J1026F21CNL from Pulse Electronics is a 1-port RJ45 modular connector jack with integrated magnetics, designed for 10/100 Base-TX Fast Ethernet applications. It features a through hole mounting style with a 90° right angle orientation and tab-up direction. The connector is shielded with an EMI finger for effective electromagnetic interference suppression.
Electrical specifications include a turns ratio of 1CT:1, typical insertion loss of -1.0 dB, return loss of -20 dB at 1-65 MHz, common mode rejection of -40 dB at 1-30 MHz, and crosstalk of -30 dB at 1-50 MHz. The hipot rating is 1500 Vrms minimum, and open circuit inductance is 350 µH minimum with 8 mA bias current. It is suitable for CAT 5 and CAT 6 UTP cables and meets IEEE 802.3 standards.
Mechanical features include a height above board of 0.550" (13.97 mm), a board guide, and a durability of 750 insertions minimum. The housing is made of thermoplastic with UL94 V-0 rating, and contacts are gold-plated phosphor bronze. The connector includes a yellow/green LED indicator. Operating temperature range is 0°C to 70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.49 | $9.49 |
| 10+ | $8.71 | $8.71 |
| 25+ | $7.82 | $7.82 |
| 50+ | $7.72 | $7.72 |
| 100+ | $7.39 | $7.39 |
| 250+ | $6.93 | $6.93 |
| 500+ | $6.67 | $6.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 pins.
Through hole.
RJ45.
Yellow - Green.
0°C to 70°C.
10/100 Base-TX.
750 insertions minimum.
