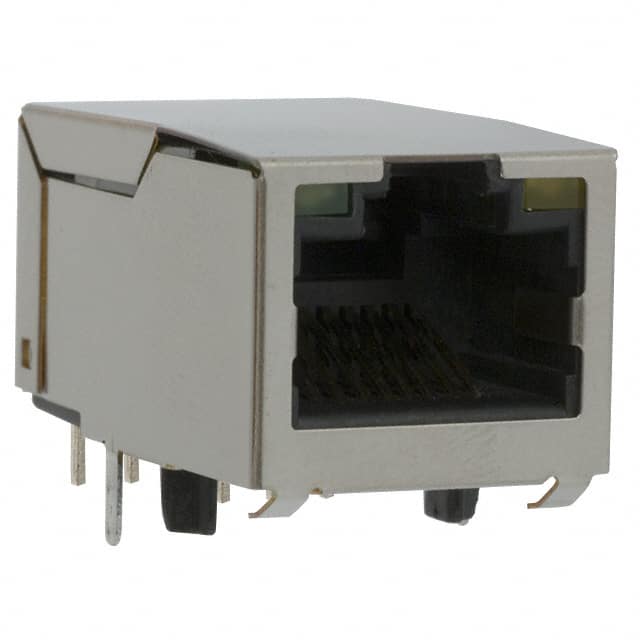

The Pulse Electronics J1011F01PNL is a single-port RJ45 connector with integrated magnetics, designed for 100 Base-TX (Fast Ethernet) applications. Part of the PulseJack family, this 1x1 tab-up connector features a through-hole mounting style with solder termination and a shielded brass housing for EMI suppression.
Electrical specifications include a 1CT:1 turns ratio for both TX and RX channels, typical insertion loss of -1.0 dB from 1 to 65 MHz, and return loss of -20 dB at 1-10 MHz. The part meets IEEE 802.3 requirements and is suitable for use with CAT 5 and CAT 6 UTP cabling. Hipot rating is 1500 Vrms at 60 Hz for 1 minute.
The connector has phosphor bronze contacts with selective gold plating, a thermoplastic UL 94 V-0 housing, and a tin matte solder area finish. It includes green and yellow LED indicators and a board guide feature for alignment. Operating temperature range is 0°C to 70°C. RoHS compliant with MSL 1 rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.29 | $9.29 |
| 10+ | $7.97 | $7.97 |
| 30+ | $6.57 | $6.57 |
| 60+ | $6.31 | $6.31 |
| 120+ | $6.13 | $6.13 |
| 270+ | $5.83 | $5.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through hole with solder termination.
Green and yellow LEDs.
0°C to 70°C.
Yes, it has a shielded brass housing.
1500 Vrms at 60 Hz for 1 minute.
10/100 Base-TX and AutoMDIX applications.
750 insertions minimum.
