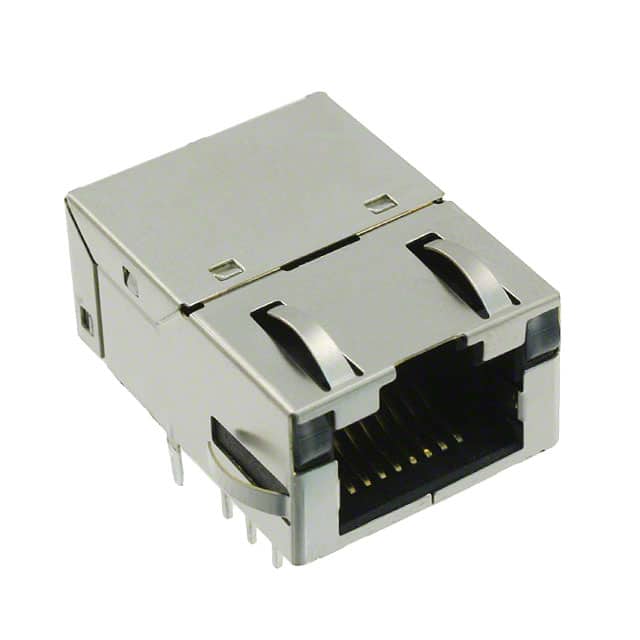

The Pulse Electronics J0G-0001NL is a single-port RJ45 modular connector jack with integrated magnetics, designed for 1000Base-T Ethernet applications. It features a tab-up orientation and a right-angle (90°) through-hole mounting style, making it suitable for PCB designs where space is constrained. The connector is shielded with EMI fingers to provide enhanced electromagnetic interference suppression.
Electrical specifications include a typical insertion loss of -1.2 dB across 1-100 MHz, typical return loss of -18 dB at 1-30 MHz, and typical common mode rejection of -40 dB at 1-10 MHz. The part supports 10/100/1000 Base-T and AutoMDIX, and is compliant with IEEE 802.3 standards. It has a minimum hipot rating of 1500 Vrms and a minimum open circuit inductance of 350 µH at 8 mA bias.
Mechanically, the connector uses phosphor bronze contacts with gold finish, rated for 750 insertions. The operating temperature range is 0°C to 70°C. The housing is thermoplastic with UL 94 V-0 rating and MSL 1 (unlimited). The part includes a board guide feature for easier assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.95 | $10.95 |
| 10+ | $10.04 | $10.04 |
| 25+ | $9.02 | $9.02 |
| 50+ | $8.73 | $8.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0°C to 70°C.
10/100/1000 Base-T and AutoMDIX.
Through-hole with solder termination.
Yes, it is shielded with EMI fingers.
750 insertions.
-1.2 dB typical across 1-100 MHz.
