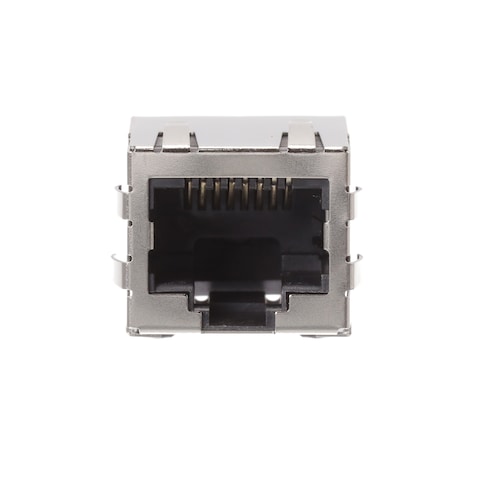

J0C-0006 Pulse Electronics J0C-0006 is a single port surface mount RJ45 jack with integrated magnetics for 10/100Base-TX. Shielded with EMI finger and board guide.
Mfr Part #:

J0C-0006

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
Pulse Electronics J0C-0006 is a single port surface mount RJ45 jack with integrated magnetics for 10/100Base-TX. Shielded with EMI finger and board guide.
✓ Total Stock: 1 pcs

J0C-0006 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request 1220 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

J0C-0006 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Connector Type
Contact Finish
Contact Material
Features
Height Above Board
Insertion Loss
LED Color
Lead Style
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Operating Temperature
Orientation
Shielding
Tab Direction
Tape & Reel
Termination
Termination Style
View Similar Products (0)

J0C-0006 Description

Short technical summary and product information.

The Pulse Electronics J0C-0006 is a single port RJ45 modular connector jack with integrated magnetics designed for 10/100Base-TX Ethernet applications. This surface mount component features a shielded design with an EMI finger for enhanced electromagnetic interference suppression. The connector has a right-angle 90° orientation with a tab-down configuration and a height above board of 0.545" (13.84mm).



Electrical performance meets IEEE 802.3i/u standards with 1CT:1 turns ratio for both transmit and receive channels. Maximum insertion loss is -1.0 dB, and minimum return loss is -18 dB from 1-10 MHz, -14 dB at 30 MHz, and -10 dB from 60-80 MHz. The magnetics provide 1500 Vrms isolation voltage and hipot test rating at 60 Hz for one minute.



The connector is terminated via solder and uses phosphor bronze contacts with gold finish. The housing is made of high-temperature thermoplastic rated UL 94 V-0. The part is available in tape and reel packaging by adding a 'T' suffix.

J0C-0006 Quick Information

Product Type: Modular Connector Jack with Magnetics
Series: J0C
Canonical Name: 10/100Base-TX Surface Mount RJ45 Single Port Jack with Integrated Magnetics
Subcategory: 10/100 Base-TX

J0C-0006 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 4
REACH Status: REACH Unaffected

J0C-0006 Features

  • Single port RJ45 surface mount connector.
  • Integrated 10/100Base-TX magnetics.
  • Shielded with EMI finger for EMC.
  • 1500 Vrms isolation per IEEE 802.3.
  • Right angle tab-down orientation.

J0C-0006 Applications

  • 10/100Base-TX Ethernet network interfaces.
  • Set-top box networking connections.
  • Network interface card (NIC) ports.
  • Consumer electronics with Ethernet connectivity.

J0C-0006 FAQs

7 frequently asked questions generated from this part’s specifications.
What type of connector is the J0C-0006?

It is a single port RJ45 modular connector jack with integrated magnetics.

What Ethernet standard does the J0C-0006 support?

It supports 10/100Base-TX per IEEE 802.3i/u standards.

Is the J0C-0006 shielded?

Yes, it is shielded and includes an EMI finger.

What is the isolation voltage of the J0C-0006 magnetics?

The isolation voltage is 1500 Vrms at 60 Hz for one minute.

What is the mounting type of the J0C-0006?

It is a surface mount (SMD) connector with solder termination.

Does the J0C-0006 have LEDs?

No, this part does not contain an LED indicator.

What is the operating temperature range of the J0C-0006?

The operating temperature range is 0°C to 70°C.
