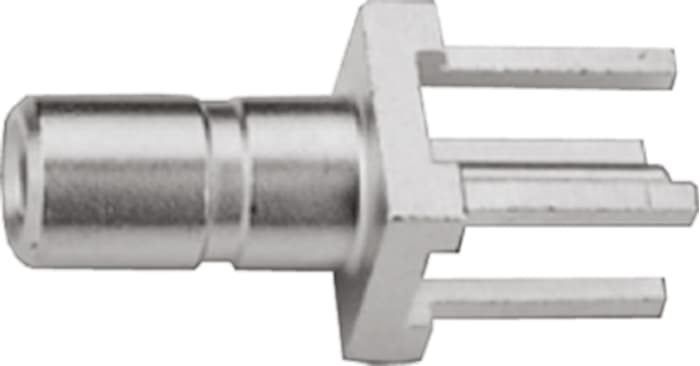

J01190A0031 The Telegartner J01190A0031 is an SSMB series male connector with a 50 Ohm impedance and straight body orientation. It features solder termination and is suitable for applications up to 3GHz.
Mfr Part #:

J01190A0031

Available from 1 distributors
Mfr Name: Telegartner
Telegartner
The Telegartner J01190A0031 is an SSMB series male connector with a 50 Ohm impedance and straight body orientation. It features solder termination and is suitable for applications up to 3GHz.
✓ Total Stock: 5 pcs
$ Price Range: $2.23

J01190A0031 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

J01190A0031 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Contact Material
Contact Plating
Impedance
Industrial Grade
Insulation Resistance
Medical Grade
Military Grade
View Similar Products (0)

J01190A0031 Description

Short technical summary and product information.

The Telegartner J01190A0031 is a male SSMB series connector designed for through-hole mounting. It offers a controlled impedance of 50 Ohms and operates effectively up to a frequency of 3GHz. The connector features a straight body orientation and utilizes solder termination for secure connections.



Constructed with a Beryllium Copper Alloy contact material and gold plating on both contacts and body, this connector ensures durability and reliable signal transmission. It is rated for a voltage proof of 500 Veff at 50 Hz and has an insulation resistance greater than 1 GΩ. The mating life is specified at over 100 cycles.



This SSMB connector is suitable for various applications, including small electronic instruments and communication equipment, due to its compact size and robust electrical characteristics. It adheres to the IEC 60 169-19 standard.

J01190A0031 Quick Information

Product Type: SSMB Connector
Series: SSMB
Canonical Name: Telegartner SSMB Series Through Hole Male SSMB Connector
Subcategory: SSMB Connectors

J01190A0031 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

J01190A0031 Estimated Pricing

Qty Low High
1+ $2.23 $2.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

J01190A0031 Features

  • SSMB series male connector
  • 50 Ohm impedance
  • Straight body orientation
  • Through hole mount type
  • Solder termination

J01190A0031 Applications

  • Suitable for RF communication equipment.
  • Used in small electronic instruments.
  • Ideal for high-frequency signal connections.
  • Applicable in communication and test equipment.
  • Designed for PCB mounting in electronic devices.

J01190A0031 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the Telegartner J01190A0031 connector?

The impedance of the Telegartner J01190A0031 connector is 50 Ohms.

What is the maximum operating frequency for this SSMB connector?

This SSMB connector is suitable for applications up to 3GHz.

How is the Telegartner J01190A0031 connector mounted?

The Telegartner J01190A0031 connector is designed for through-hole mounting.

What termination type does the J01190A0031 use?

The J01190A0031 connector uses solder termination.

What is the mating life of the Telegartner J01190A0031?

The mating life of the Telegartner J01190A0031 is over 100 cycles.
