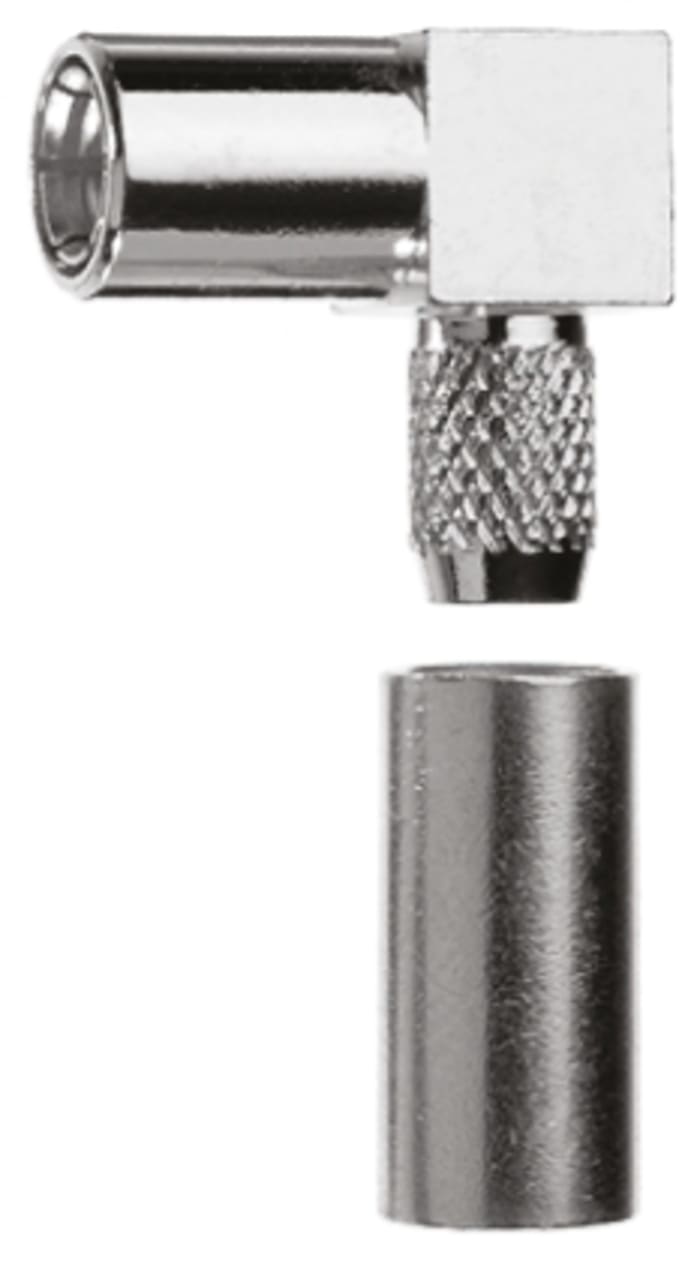

J01161A0661 The Telegartner J01161A0661 is a female SMB series coaxial connector with a right angle orientation. It offers a 50 Ω impedance and is designed for cable mounting.
Mfr Part #:

J01161A0661

Available from 1 distributors
Mfr Name: Telegartner
Telegartner
The Telegartner J01161A0661 is a female SMB series coaxial connector with a right angle orientation. It offers a 50 Ω impedance and is designed for cable mounting.
✓ Total Stock: 10 pcs
$ Price Range: $0.99

J01161A0661 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

J01161A0661 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Type
Contact Material
Contact Plating
Country of Origin
Failure Rate
Impedance
Orientation
Product Type
SVHC Present
Termination Style
View Similar Products (0)

J01161A0661 Description

Short technical summary and product information.

This Telegartner J01161A0661 is a female SMB series coaxial connector designed for cable mounting. It features a right angle orientation and a standard size, making it suitable for various applications.



The connector has an impedance of 50 Ω and operates within a frequency range of up to 4 GHz. It is constructed with a Beryllium Copper Alloy contact material and plated with Copper Nickel Gold Alloy, while the body is plated with gold. The termination type is crimp, and it is compatible with cable types RG188A/U, RG316/U, and RG-174U.



Operating temperatures range from a minimum of -65°C to a maximum of 165°C. The contact gender is female, and the polarity is normal. This SMB connector is manufactured in Germany.



It is suitable for applications requiring a reliable RF connection with specific impedance and orientation requirements.

J01161A0661 Quick Information

Product Type: Coaxial Connector
Series: SMB
Canonical Name: Telegartner J01161A0661 SMB Series Cable Female SMB, 50 Ω, Right Angle Body Crimp Coaxial Connector
Subcategory: Coaxial Connectors

J01161A0661 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

J01161A0661 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

J01161A0661 Features

  • Female SMB coaxial connector.
  • Right angle orientation for cable mounting.
  • 50 Ω impedance for RF applications.
  • Crimp termination for RG188A/U, RG316/U, RG-174U.
  • Wide operating temperature range.

J01161A0661 Applications

  • Used in 50 Ω RF cable assemblies.
  • Suitable for high-frequency test equipment.
  • For telecommunications and data networks.
  • Right-angle form for space-limited indoor wiring.
  • Common in wireless infrastructure and instrumentation.

J01161A0661 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the J01161A0661?

-65°C to +165°C.

What is the impedance of this connector?

50 Ω.

What cable types does the J01161A0661 support?

RG188A/U, RG316/U, and RG-174U.

What is the maximum frequency rating?

4 GHz.

What termination style is used?

Crimp.

Is this a right-angle SMB connector?

Yes, it has right-angle orientation.

What is the body plating of this connector?

Gold.
