| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Durability | |
| Impedance | |
| Mounting Type | |
| Working Voltage |

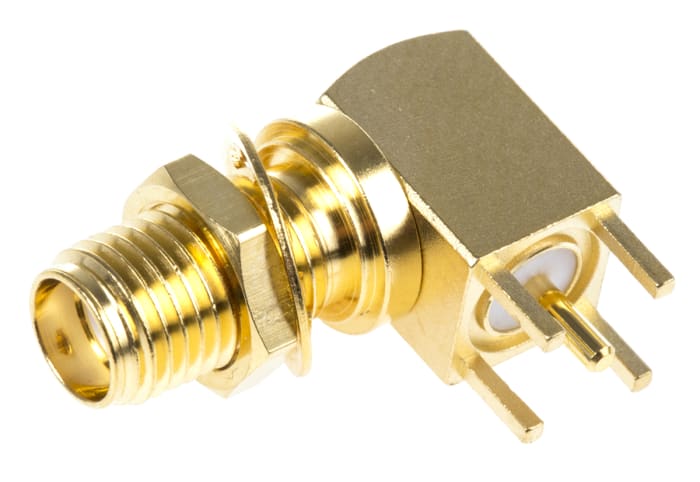

The Telegartner J01151A0201 is a female SMA angle bulkhead receptacle designed for printed circuit board mounting. This connector operates with a controlled impedance of 50 Ohms and can be used up to frequencies exceeding 18 GHz.
It features a through-hole termination type and a right-angle body orientation, making it suitable for PCB applications where space or signal routing requires this configuration. The connector is rated for a maximum operating voltage of 335 V/50 Hz and has a voltage proof of 1 kV/50 Hz. The mating face sealing meets IP 68 standards when mated.
Mechanical characteristics include a durability of at least 500 mating cycles and a recommended coupling torque between 79 and 113 Ncm. The operating temperature range is from -65°C to 165°C. The SMA series is widely used in communications, satellite, and test equipment applications due to its threaded coupling and reliable performance.
This specific model has a gold finish on the outer conductor and other metal parts, providing good conductivity and corrosion resistance. The insulator material is PTFE, and gasket material is MVQ.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the Telegartner J01151A0201 connector is 50 Ohms.
The Telegartner J01151A0201 connector can be used up to frequencies of over 18 GHz.
The operating temperature range for this connector is -65°C to 165°C.
The connector is rated for a minimum of 500 mating cycles.
This connector uses a through-hole mounting type.
