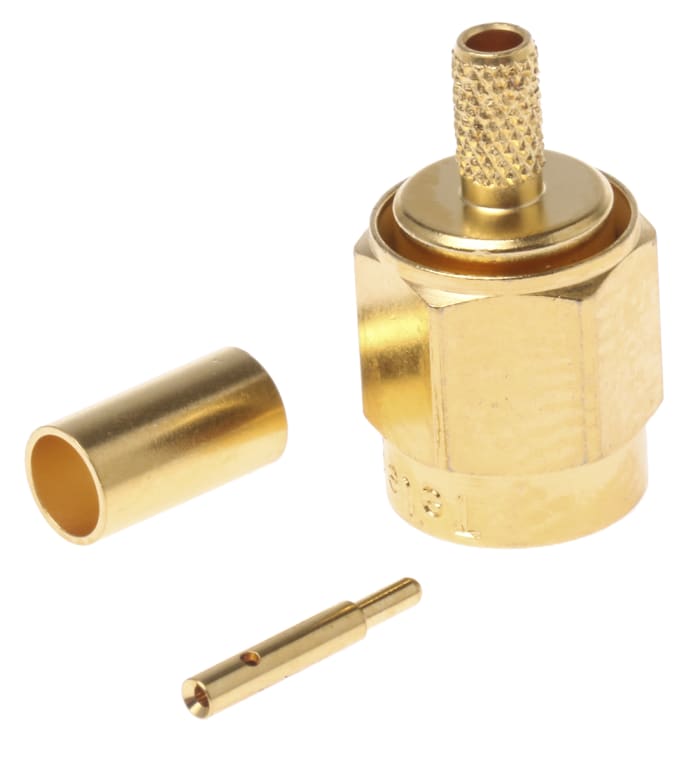

J01150A0011 The Telegartner J01150A0011 is a male SMA coaxial connector designed for cable mounting. It offers a 50 Ohm impedance and operates up to 18 GHz.
Mfr Part #:

J01150A0011

Available from 1 distributors
Mfr Name: Telegartner
Telegartner
The Telegartner J01150A0011 is a male SMA coaxial connector designed for cable mounting. It offers a 50 Ohm impedance and operates up to 18 GHz.
✓ Total Stock: 133 pcs
$ Price Range: $0.38

J01150A0011 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
133 pcs
On Request
133 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

J01150A0011 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Type
Contact Material
Contact Plating
Country of Origin
Failure Rate
Impedance
Orientation
Product Type
View Similar Products (0)

J01150A0011 Description

Short technical summary and product information.

This Telegartner J01150A0011 is a professional-grade SMA coaxial connector for cable applications. It features a straight, male orientation and a secure screw-type coupling mechanism.



With a 50 Ohm impedance, this connector provides excellent electrical performance from DC to 18 GHz. It is suitable for various coaxial cable types including RG316/U, RG-174U, and RG188A/U. The connector has a gold-plated body and a beryllium copper alloy contact material with a copper nickel gold alloy plating.



Designed for durability, the SMA connector is lightweight, compact, and vibration-proof. It operates within a temperature range of -65°C to 165°C. Applications include communications, test equipment, satellite systems, antennas, and instrumentation.



The connector is terminated via a crimp method and has a standard size. It is manufactured in Germany.

J01150A0011 Quick Information

Product Type: Coaxial Connector
Series: SMA
Canonical Name: Telegartner J01150A0011 SMA Series Cable Male SMA, 50 Ω, Straight Body Crimp
Subcategory: Coaxial Connectors

J01150A0011 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

J01150A0011 Estimated Pricing

Qty Low High
1+ $0.38 $0.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

J01150A0011 Features

  • Professional quality 50 Ohm SMA cable mount plug.
  • Operates from DC to 18 GHz frequency range.
  • Straight male orientation with crimp termination.
  • Gold plated body and durable contact materials.
  • Vibration proof design for reliable connections.

J01150A0011 Applications

  • Ideal for communication systems.
  • Suitable for test equipment.
  • Used in satellite applications.
  • Applicable for antenna connections.
  • Designed for instrumentation use.

J01150A0011 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the Telegartner J01150A0011 coaxial connector?

The impedance of the Telegartner J01150A0011 is 50 Ohms.

What is the maximum operating frequency for this SMA connector?

The Telegartner J01150A0011 operates up to 18 GHz.

What type of coaxial cable can be used with the J01150A0011?

This connector is compatible with RG316/U, RG-174U, and RG188A/U cable types.

What is the termination type for the Telegartner J01150A0011?

The termination type is Crimp.

What are the minimum and maximum operating temperatures for this connector?

The minimum operating temperature is -65°C and the maximum is 165°C.
