| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Type | |
| Contact Material | |
| Contact Plating | |
| Country of Origin | |
| Failure Rate | |
| Impedance | |
| Mounting Type | |
| Orientation | |
| Product Type | |
| SVHC Present | |
| Termination Style |

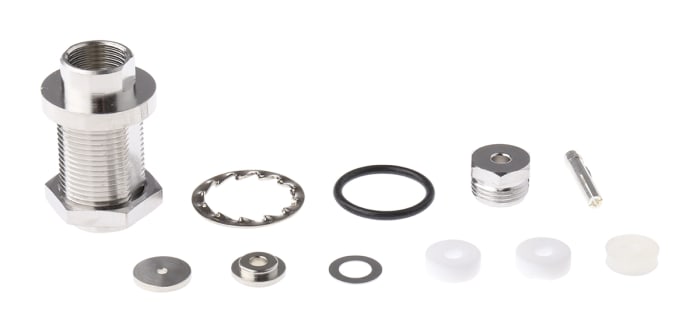

The Telegartner J01021H1003 is an N Series female coaxial connector designed for panel mounting. It features a 50 Ohm impedance and a straight body orientation, making it suitable for various RF applications.
This connector is specified for use with cable types RG-174U, RG188A/U, and RG316/U. It has a solder termination type and a normal polarity. The operating frequency range extends up to 11 GHz, with a minimum operating temperature of -65°C and a maximum of 165°C.
The body is plated with a copper nickel alloy, and the contacts are made from a beryllium copper alloy with silver plating. This connector is manufactured in Germany.
Key specifications include a 50 Ohm impedance, female connector gender, and straight orientation. It is designed for bulkhead mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This is an N connector.
The impedance is 50 Ohms.
It supports RG-174U, RG188A/U, and RG316/U cables.
The maximum operating frequency is 11 GHz.
The operating temperature range is -65°C to +165°C.
The termination type is solder.
Yes, it features bulkhead mounting.
